Creston Cards Blades

DMC-4KZ-C

DigitalMedia 8G+® 4K60 4:4:4 HDR Input Card for DM® Switchers, HDBaseT® Compatible

Provides a single DM 8G+® or HDBaseT® input for any DigitalMedia Switcher with modular input card slots. Handles 4K60 4:4:4 and HDR video signals.

The DMC-4KZ-C is an input card designed for use with any card-based Crestron® DigitalMedia Switcher. It provides one DM 8G+® input, with complementary HDMI® pass-through and analog audio outputs. Using a single CAT type twisted pair cable, the DM 8G+ input enables the connection of a DM 8G+ transmitter, the output of another DM® switcher, or an HDBaseT® certified source.

Key Features DMC-4KZ-C

  • Modular input card for a DM-MD8X8, DM-MD16X16, or DM-MD32X32 switcher
  • Provides a single 4K DM 8G+® input
  • HDBaseT® compatible — Enables direct connection to other HDBaseT certified equipment
  • Handles UHD and 4K video resolutions up to 4K60 4:4:4
  • Handles HDR (High Dynamic Range) video (HDR10)
  • Handles 3D video and Deep Color
  • Handles Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
  • HDCP 2.2 compliant
  • Supports cable lengths up to 330 ft (100 m) for all resolutions up to UHD and 4K using DM® Ultra cable
  • Supports cable lengths up to 330 ft (100 m) for 1080p, WUXGA, and 2K using DM 8G® cable or CAT5e
  • Supports cable lengths up to 230 ft (70 m) for UHD and 4K using DM 8G cable, or 165 ft (50 m) using CAT5e
  • Includes an HDMI® output for pass-through of the input signal
  • Includes a stereo analog line-level audio output with volume control

DMC-4KZ-CO-HD

2-Channel DigitalMedia 8G+® 4K60 4:4:4 HDR Output Card for DM® Switchers

A modular output card for DM-MD8X8, DM-MD16X16, or DM-MD32X32 switchers. Provides two independent 4K DM 8G+® outputs, plus one HDMI® output in parallel with the first DM 8G+ output. Supports 4K60 4:4:4 and HDR video signals.

The DMC-4KZ-CO-HD is an output card designed for use with any card-based Crestron® DigitalMedia Switcher. It provides two independent DM 8G+® outputs, plus one HDMI® output. The HDMI output carries the same signal as the first DM 8G+ output. Both DM 8G+ outputs are compatible with HDBaseT®. Using a single CAT type twisted pair cable, each DM 8G+ output enables connection to a DM 8G+ receiver, the input of another DM® switcher, or an HDBaseT certified display device or receiver.

Key Features DMC-4KZ-CO-HD

  • Modular output card for a DM-MD8X8, DM-MD16X16, or DM-MD32X32 switcher
  • Provides two independent 4K DM 8G+® outputs
  • HDBaseT® compatible — Enables direct connection to other HDBaseT certified equipment
  • Includes a parallel HDMI® port on the first output
  • Handles UHD and 4K video resolutions up to 4K60 4:4:4
  • Handles HDR (High Dynamic Range) video (HDR10)
  • Handles 3D video and Deep Color
  • Handles Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
  • HDCP 2.2 compliant

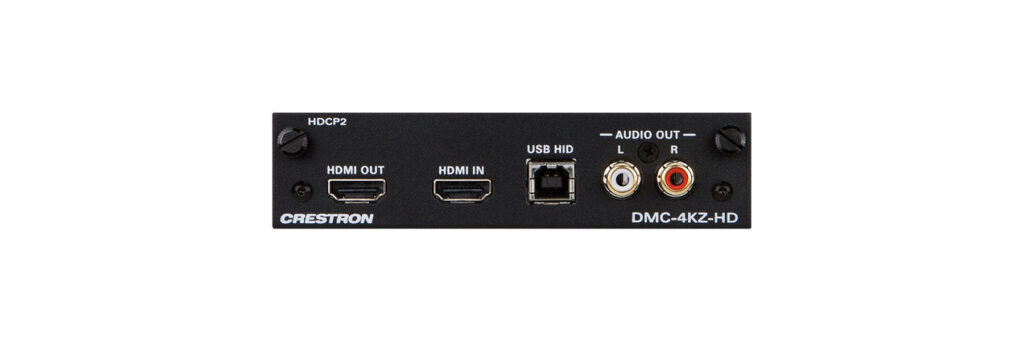

DMC-4KZ-HD

The DMC-4KZ-HD is an input card designed for use with any card-based Crestron DigitalMedia Switcher. It provides one HDMI® input, with complementary HDMI pass-through and analog audio outputs. A USB HID port is also provided. The HDMI input handles Full HD 1080p, Ultra HD, 2K, and 4K video signals with support for HDCP 2.2, HDR10, Deep Color, 3D, and high-bitrate 7.1 audio. The HDMI input can also handle DVI and Dual-Mode DisplayPort signals using an appropriate adapter or interface cable.

Key Features DMC-4KZ-HD

  • Modular input card for a DM-MD8X8, DM-MD16X16, or DM-MD32X32 switcher
  • Provides a single 4K HDMI® input[2]
  • Handles UHD and 4K video resolutions up to 4K60 4:4:4[2]
  • Handles HDR (High Dynamic Range) video (HDR10)[2]
  • Handles 3D video and Deep Color
  • Handles Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
  • HDCP 2.2 compliant

DMC-4KZ-HD-DSP

The DMC-4KZ-HD-DSP is an input card designed for use with any card-based Crestron®  DigitalMedia  Switcher. It provides one HDMI® input, with complementary HDMI pass-through and analog audio outputs. A USB HID port is also provided. The HDMI input handles Full HD 1080p, Ultra HD, 2K, and 4K video signals with support for HDCP 2.2, HDR10, Deep Color, 3D, and high-bitrate 7.1 audio. The HDMI input can also handle DVI and Dual-Mode DisplayPort signals using an appropriate adapter or interface cable.

The DMC-4KZ-HD-DSP provides all of the features of the DMC-4KZ-HD with the addition of downmixing to enable the simultaneous distribution of multichannel 7.1 surround sound and 2-channel stereo signals. It is recommended for use with surround sound sources to allow the original multichannel signal to be distributed to rooms with surround sound systems, while simultaneously distributing a 2-channel downmix signal to stereo-only rooms and devices.

Key Features DMC-4KZ-HD-DSP

  • Modular input card for a DM-MD8X8, DM-MD16X16, or DM-MD32X32 switcher
  • Provides a single 4K HDMI® input
  • Handles UHD and 4K video resolutions up to 4K60 4:4:4
  • Handles HDR (High Dynamic Range) video (HDR10)
  • Handles 3D video and Deep Color
  • Handles Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
  • HDCP 2.2 compliant
  • Includes an HDMI output for pass-through of the input signal

DMC-4KZ-HDO

2-Channel HDMI® 4K60 4:4:4 HDR Scaling Output Card for DM® Switchers

A modular output card for card-based Crestron® DigitalMedia switchers. Provides two independent 4K HDMI® outputs with complementary analog audio outputs. Supports 4K60 4:4:4 and HDR video signals and provides built-in scaling.

The DMC-4KZ-HDO is an output card designed for use with card-based Crestron® DigitalMedia switchers (for example, the DM-MD8X8-CPU3). The card provides two independent HDMI® outputs with complementary analog stereo audio outputs. The HDMI outputs handle Full HD 1080p, Ultra HD, 2K, and 4K video signals with support for HDCP 2.2, HDR10, Deep Color, and high-bitrate 7.1 audio. Built-in 4K604:4:4 scaling enables devices connected to the HDMI outputs to handle any video resolution from NTSC 480i to DCI 4K. DVI signals are also supported using an appropriate adapter or interface cable.

Key Features DMC-4KZ-HDO

  • Modular output card for card-based DigitalMedia switchers
  •  Handles UHD and 4K video resolutions up to 4K60 4:4:4
  •  Handles HDR (High Dynamic Range) video (HDR10) and Deep Color
  •  Provides two independent HDMI® outputs
  •  Includes a discrete 4K60 4:4:4 scaler for each HDMI output
  •  Handles Dolby® TrueHD, Dolby Atmos®, DTS-HD®, and uncompressed 7.1 linear PCM audio
  •  HDCP 2.2 compliant
  • Supports video wall configurations of up to 8 x 8
  • Provides an analog stereo audio output for each HDMI output
  • Audio de-embedding of stereo 2-channel audio signals
  • Enables device control via CEC (Consumer Electronics Control)
  • Occupies a single DM® switcher output card slot

DMC-DVI

The DMC-DVI is an input card designed for use with any card-based Crestron®  DigitalMedia  Switcher. It provides one DVI-I type input, with a complementary analog stereo audio input and HDMI® pass-through output. A USB HID port is also provided.

The DVI-I input allows for the connection of a single-link DVI digital video source or an analog VGA, RGB, or component video source. It handles computer resolutions up to WUXGA 1920×1200, as well as HD video up to 1080p60. Analog video signals are converted to digital using high-quality 30 bit sampling.

Key Features DMC-DVI

  • Modular input card for a DM-MD8X8, DM-MD16X16, or DM-MD32X32 switcher
  • Provides a single DVI-I input with balanced stereo analog audio
  • Accommodates DVI, VGA, RGB, and component video sources
  • Handles computer resolutions up to WUXGA
  • Handles video resolutions up to Full HD 1080p
  • HDCP 1.2 compliant
  • Enables embedding of analog audio with digital video
  • Includes an HDMI® output for pass-through of the input signal
  • Enables USB HID signal extension for a local computer
  • Compatible with Crestron USB over Ethernet Extenders
  • Occupies a single DM® switcher input card slot
