Creston DigitalMedia Transmitters

DM-TX-201-C

The DM‑TX‑201‑C provides an interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G+® transmitter and switcher with HDMI®, VGA, and analog audio inputs along with Ethernet and USB HID ports for a total connectivity solution.

Its low-profile, surface-mountable design makes the DM‑TX‑201‑C ideal for installation beneath a conference table, inside a lectern or equipment rack, or at virtually any other location in a boardroom, classroom, auditorium, or residence. It connects to the head end or display location using a single CAT type twisted pair cable. In addition to DM 8G+, it is also compatible with HDBaseT® standard, which allows it to be connected directly to the input of an HDBaseT certified display device.

DM-TX-201-C Key Features

  • DigitalMedia 8G+® transmitter and multimedia interface
  • Built-in 2×1 AV switcher with auto-switching and analog audio-breakaway
  • QuickSwitch HD technology manages HDCP keys for fast, reliable switching
  • Connects to a DM® switcher or receiver over a single CAT type twisted pair cable
  • Supports cable lengths up to 330 ft (100 m) using DM 8G® cable or CAT5e
  • HDBaseT® Certified standard — Enables direct connection to other HDBaseT certified equipment
  • Handles video resolutions up to Full HD 1080p

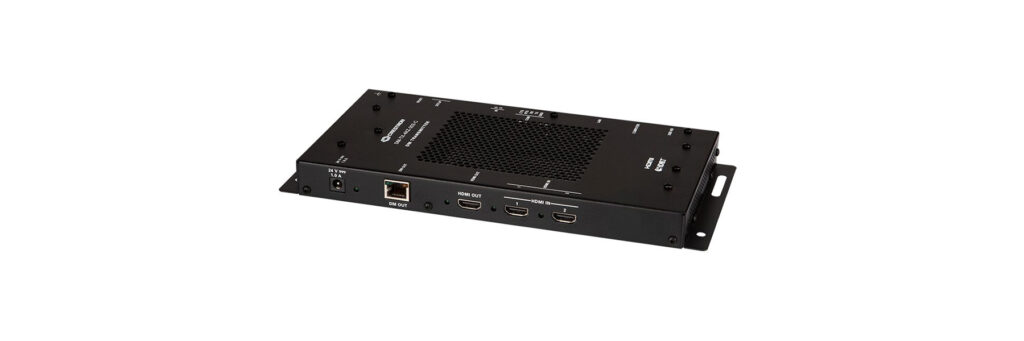

DM-TX-4KZ-202-C

The DM‑TX‑4KZ‑202‑C provides a versatile interface for ultra high-definition AV and computer sources as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G+® transmitter and switcher with two HDMI® inputs and as a control module, providing RS-232 and IR control ports, plus Ethernet and USB HID ports for a total connectivity solution.

Its low-profile, surface-mountable design makes the DM‑TX‑4KZ‑202‑C ideal for installation beneath a conference table, inside a lectern or equipment rack, or at virtually any other location in a boardroom, classroom, auditorium, or residence. It connects to the head end or display location using a single CAT type twisted pair cable. In addition to DM 8G+, it is also compatible with HDBaseT® standard, which allows it to be connected directly to the input of an HDBaseT certified display device.

DM-TX-4KZ-202-C Key Features

  • HDBaseT® Certified standard — Enables direct connection to other HDBaseT certified equipment
  • Local HDMI output (DVI compatible)
  • Handles 3D video and Deep Color
  • Handles Dolby® TrueHD, Dolby Atmos®, DTS HD®,DTS:X®, and uncompressed 7.1 linear PCM audio
  • HDCP 2.2 compliant
  • Performs automatic AV signal format management via EDID
  • Enables device control via CEC, IR, RS-232, and Ethernet
  • Enables USB HID signal extension for a local computer

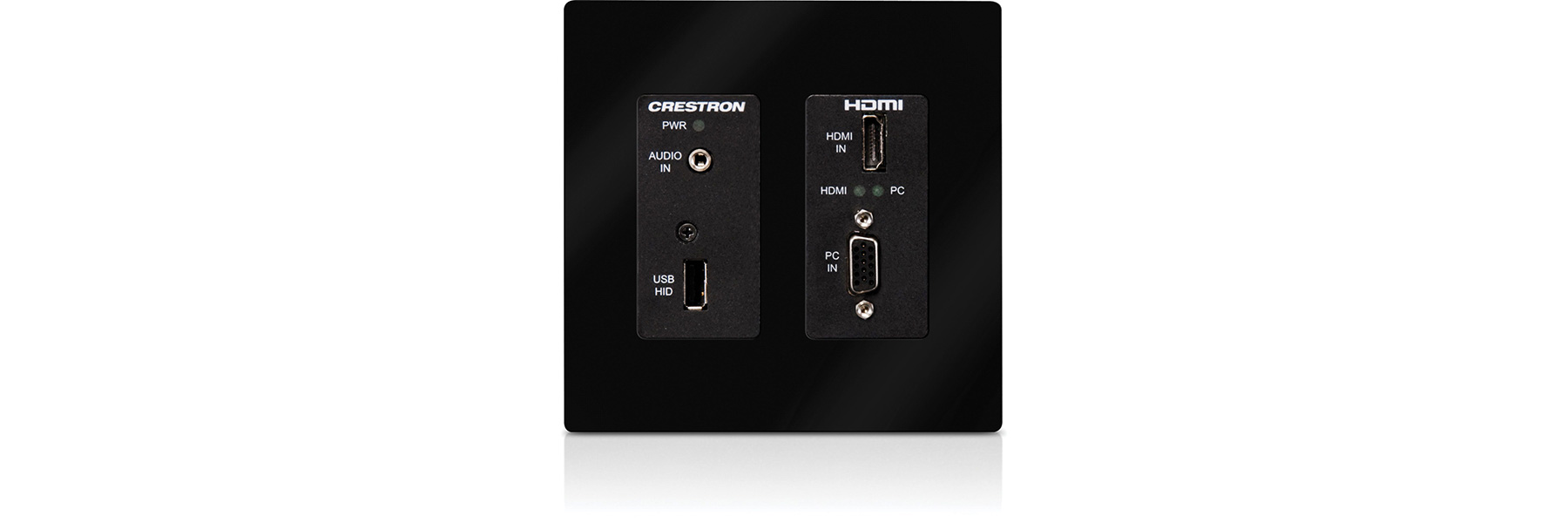

DM-TX-200-C-2G-B-T

The DM-TX-200-C-2G provides an interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia system. It is ideal for wall, lectern, and floor box applications in a boardroom, classroom, auditorium, or residence. It functions as a DM 8G+® transmitter and switcher, providing HDMI®, VGA, and analog audio inputs along with a USB HID host port.

In addition to DM 8G+, it is also compatible with HDBaseT®, allowing it to be connected directly to the input of an HDBaseT certified display device. It connects to the head end or display location using a single CAT type twisted pair cable.

DM-TX-200-C-2G-B-T Key Features

  • DigitalMedia 8G+® transmitter and multimedia interface
  • Built-in 2×1 AV switcher with auto-switching and analog audio-breakaway
  • QuickSwitch HD technology achieves fast, reliable switching
  • Connects to a DM® switcher or receiver over a single CAT type twisted pair cable
  • Supports cable lengths up to 330 ft (100 m) using DM 8G® cable or CAT5e
  • HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
  • Provides HDMI® and RGB/component video inputs
  • Also supports DVI and Dual-Mode DisplayPort sources
  • Handles video resolutions up to Full HD 1080p
  • Handles computer resolutions up to WUXGA
  • Handles Dolby Digital®, DTS®, and uncompressed 7.1 linear PCM audio
  • HDCP compliant

DM-TX-4K-302-C

The DM‑TX‑4K‑302‑C provides a versatile interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G+® transmitter and switcher with HDMI®, VGA, and analog audio inputs and as a control module, providing RS-232 and IR control ports, plus Ethernet and USB HID ports for a total connectivity solution.

Its low-profile, surface-mountable design makes the DM‑TX‑4K‑302‑C ideal for installation beneath a conference table, inside a lectern or equipment rack, or at virtually any other location in a boardroom, classroom, auditorium, or residence. It connects to the head end or display location using a single CAT type twisted pair cable. In addition to DM 8G+, it is also compatible with HDBaseT® standard, which allows it to be connected directly to the input of an HDBaseT certified display device.

DM-TX-4K-302-C Key Features

  • Handles digital video with resolutions up to 4K and Ultra HD
  • Handles analog video with resolutions up to HD 1080p and WUXGA
  • Handles 3D video and Deep Color
  • Handles Dolby® TrueHD, Dolby Atmos®, DTS HD®, and uncompressed 7.1 linear PCM audio
  • HDCP 2.2 compliant
  • Performs automatic AV signal format management via EDID
  • Enables device control via CEC, IR, RS-232, and Ethernet
  • Enables USB HID signal extension for a local computer
  • Compatible with Crestron® USB over Ethernet Extenders
  • Compatible with Crestron Connect It Cable Caddies

DM-TX-4KZ-302-C

The DM‑TX‑4KZ‑302‑C provides a versatile interface for ultra high-definition AV and computer sources as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G+® transmitter and switcher with HDMI® and DisplayPort inputs and as a control module, providing RS-232 and IR control ports, plus Ethernet and USB HID ports for a total connectivity solution.

Its low-profile, surface-mountable design makes the DM‑TX‑4KZ‑302‑C ideal for installation beneath a conference table, inside a lectern or equipment rack, or at virtually any other location in a boardroom, classroom, auditorium, or residence. It connects to the head end or display location using a single CAT type twisted pair cable. In addition to DM 8G+, it is also compatible with HDBaseT® standard, which allows it to be connected directly to the input of an HDBaseT certified display device.

DM-TX-4KZ-302-C Key Features

  • QuickSwitch HD technology manages HDCP keys for fast, reliable switching
  • Connects to a DM® switcher or receiver over a single CAT type twisted pair cable
  • Supports cable lengths up to 330 ft (100 m) for all resolutions up to UHD and 4K using DM Ultra cable
  • Supports cable lengths up to 330 ft (100 m) for 1080p, WUXGA, and 2K using DM 8G® cable or CAT5e
  • Supports cable lengths up to 230 ft (70 m) for UHD and 4K using DM 8G cable, or 165 ft (50 m) using CAT5e
  • HDBaseT® Certified standard — Enables direct connection to other HDBaseT certified equipment
  • Local HDMI output (DVI compatible)

DM-TX-4KZ-100-C-1G-B-T

The DM-TX-4KZ-100-C-1G wall plate transmitter provides a cost-effective solution for a single AV source as part of a complete Crestron® DigitalMedia system. Functioning as a DM 8G+® transmitter and control interface, the DM-TX-4KZ-100-C-1G provides an HDMI® input and a DM 8G+ output as well as IR and RS-232 control ports. The DM-TX-4KZ-100-C-1G incorporates DM 4KZ technology, which enables 4K60 4:4:4 and HDR (High Dynamic Range) support. The DM-TX-4KZ-100-C-1G is also compatible with HDBaseT® technology.

DM-TX-4KZ-100-C-1G-B-T Key Features

  • 4K60 4:4:4 support
  • HDR10, Deep Color, and 3D video
  • Dolby® TrueHD, Dolby Atmos®, DTS HD®, and uncompressed 7.1 linear PCM audio
  • HDBaseT® compatibility
  • HDCP 2.2 compliance
  • HDMI® input (DVI and Dual-Mode DisplayPort interface compatible)
  • DM 8G+® output for connection to a DM® switcher or receiver via a single CAT5e (or higher) twisted pair cable
  • Transmission distance up to 330 ft (100 m) for resolutions up to UHD and 4K using DM Ultra cable
  • Transmission distance up to 330 ft (100 m) for 1080p, WUXGA, and 2K using DM 8G® cable or CAT5e

DM-TX-401-C

The DM-TX-401-C provides a versatile interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G+® transmitter and switcher, providing DisplayPort, HDMI®, VGA, composite video, and analog audio inputs.

It also functions as a control module, providing RS-232 and IR control ports, plus Ethernet and USB HID ports for a total connectivity solution. In addition to DM 8G+, it is also compatible with HDBaseT®, allowing it to be connected directly to the input of an HDBaseT certified display device. It can be rack-mounted, placed on a shelf, or attached under a table, and connects to the head end or display location using a single CAT type twisted pair cable.

DM-TX-401-C Key Features

  • DigitalMedia 8G+® transmitter and multimedia interface
  • Built-in 4×1 AV switcher with front panel input selection, auto-switching, and analog audio-breakaway
  • QuickSwitch HD technology achieves fast, reliable switching
  • Connects to a DM® switcher or receiver over a single CAT type twisted pair cable
  • Supports cable lengths up to 330 ft (100 m) using DM 8G® cable or CAT5e
  • HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
  • Provides DisplayPort, HDMI®, RGB/component, and composite video inputs
  • Also supports DVI sources
  • Handles video resolutions up to Full HD 1080p
  • Handles computer resolutions up to WUXGA
  • Handles 3D video and Deep Color

DM-TX-200-C-2G-W-T

The DM-TX-200-C-2G provides an interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia system. It is ideal for wall, lectern, and floor box applications in a boardroom, classroom, auditorium, or residence. It functions as a DM 8G+® transmitter and switcher, providing HDMI®, VGA, and analog audio inputs along with a USB HID host port.

In addition to DM 8G+, it is also compatible with HDBaseT®, allowing it to be connected directly to the input of an HDBaseT certified display device. It connects to the head end or display location using a single CAT type twisted pair cable.

DM-TX-200-C-2G-W-T Key Features

  • DigitalMedia 8G+® transmitter and multimedia interface
  • Built-in 2×1 AV switcher with auto-switching and analog audio-breakaway
  • QuickSwitch HD technology achieves fast, reliable switching
  • Connects to a DM® switcher or receiver over a single CAT type twisted pair cable
  • Supports cable lengths up to 330 ft (100 m) using DM 8G® cable or CAT5e
  • HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
  • Provides HDMI® and RGB/component video inputs
  • Also supports DVI and Dual-Mode DisplayPort sources
  • Handles video resolutions up to Full HD 1080p
  • Handles computer resolutions up to WUXGA
  • Handles Dolby Digital®, DTS®, and uncompressed 7.1 linear PCM audio
  • HDCP compliant

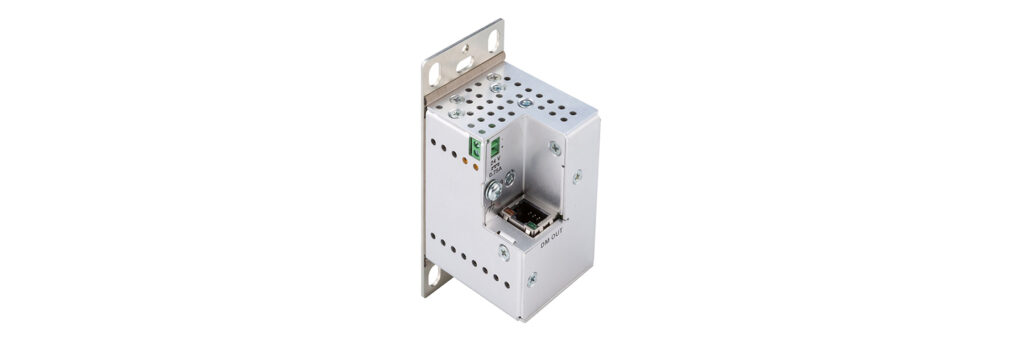

DM-TX-4KZ-100-C-1G-W-T

The DM-TX-4KZ-100-C-1G wall plate transmitter provides a cost-effective solution for a single AV source as part of a complete Crestron® DigitalMedia system. Functioning as a DM 8G+® transmitter and control interface, the DM-TX-4KZ-100-C-1G provides an HDMI® input and a DM 8G+ output as well as IR and RS-232 control ports. The DM-TX-4KZ-100-C-1G incorporates DM 4KZ technology, which enables 4K60 4:4:4 and HDR (High Dynamic Range) support. The DM-TX-4KZ-100-C-1G is also compatible with HDBaseT® technology.

The DM-TX-4KZ-100-C-1G wall plate transmitter provides a 1‑gang mountable design and is available in white (DM-TX-4KZ-100-C-1G-W-T) and black (DM-TX-4KZ-100-C-1G-B-T).

DM-TX-4KZ-100-C-1G-W-T Key Features

  • 4K60 4:4:4 support
  • HDR10, Deep Color, and 3D video
  • Dolby® TrueHD, Dolby Atmos®, DTS HD®, and uncompressed 7.1 linear PCM audio
  • HDBaseT® compatibility
  • HDCP 2.2 compliance
  • HDMI® input (DVI and Dual-Mode DisplayPort interface compatible)
  • DM 8G+® output for connection to a DM® switcher or receiver via a single CAT5e (or higher) twisted pair cable

DM-TX-201-S

The DM-TX-201-S provides a simple interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia system. Its low-profile, surface-mountable design makes it ideal for installation beneath a conference table, inside a lectern or equipment rack, or at virtually any other location in a boardroom, classroom, auditorium, or residence.

It functions as a DM 8G® Fiber transmitter and switcher, providing HDMI®, VGA, and analog audio inputs along with Ethernet and USB HID ports for a total connectivity solution. It connects to the head end or display location using a single multimode fiber strand.

DM-TX-201-S Key Features

  • DigitalMedia 8G Fiber transmitter and multimedia interface
  • Built-in 2×1 AV switcher with auto-switching and analog audio-breakaway
  • QuickSwitch HD® technology achieves fast, reliable switching
  • Connects to a DM® switcher or receiver over one multimode fiber strand
  • Supports cable lengths up to 1000 ft (300 m) using CresFiber® 8G, or 500 ft (150 m) using other multimode fiber
  • Provides HDMI® and RGB/component video inputs
  • Also supports DVI and DisplayPort Multimode sources
  • Handles video resolutions up to Full HD 1080p
  • Handles computer resolutions up to WUXGA

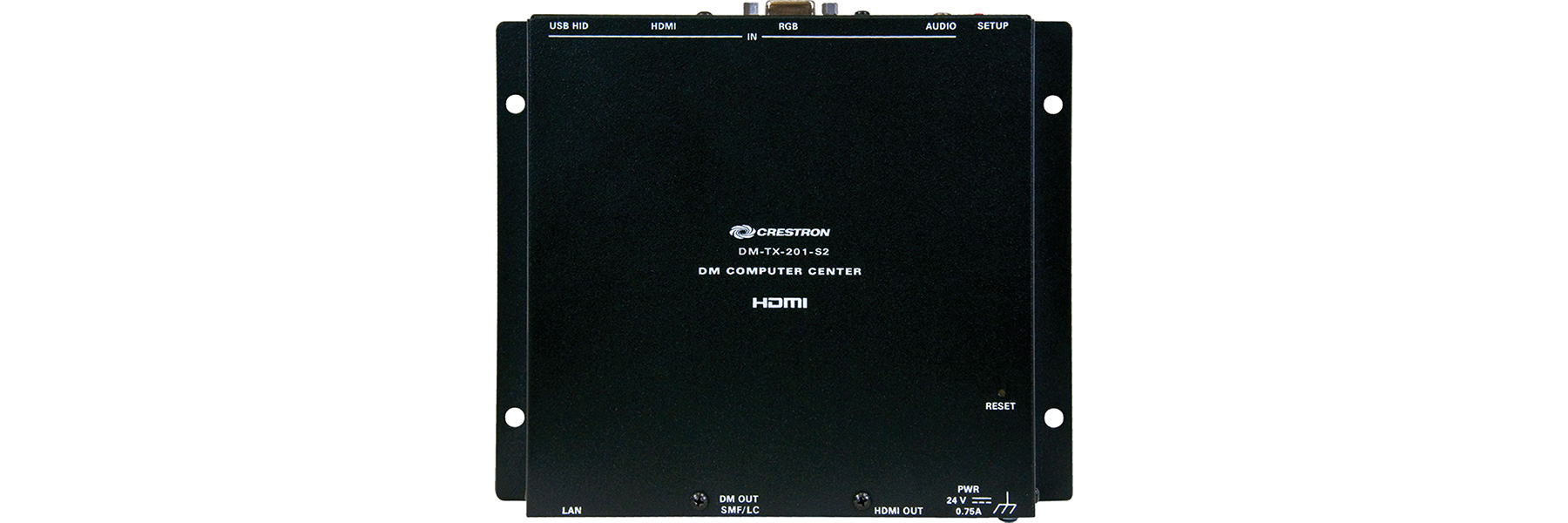

DM-TX-201-S2

The DM-TX-201-S provides a simple interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia system. Its low-profile, surface-mountable design makes it ideal for installation beneath a conference table, inside a lectern or equipment rack, or at virtually any other location in a boardroom, classroom, auditorium, or residence. It functions as a DM 8G® SM Fiber transmitter and switcher, providing HDMI®, VGA, and analog audio inputs along with Ethernet and USB HID ports for a total connectivity solution. It connects to the head end or display location using one single-mode fiber strand.

DM-TX-201-S2 Key Features

  • Detects and reports detailed video and audio input information
  • Performs automatic AV signal format management via EDID
  • Provides a 10/100 Ethernet LAN connection
  • Enables device control via CEC and Ethernet
  • Enables USB HID signal extension for a local computer
  • Compatible with Crestron® USB over Ethernet Extenders [4]
  • Allows quick, easy setup and diagnostics
  • Low-profile surface-mount design
  • Universal power pack included

DM-TX-401-S

The DM-TX-401-S provides a versatile interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G® Fiber transmitter and switcher, providing DisplayPort, HDMI®, VGA, composite video, and analog audio inputs. It also functions as a control module, providing RS-232 and IR control ports, plus Ethernet and USB HID ports for a total connectivity solution. It can be rack-mounted, placed on a shelf, or attached under a table, and connects to the head end or display location using a single multimode fiber strand.

DM-TX-401-S Key Features

  • DigitalMedia 8G Fiber transmitter and multimedia interface
  • Built-in 4×1 AV switcher with front panel input selection, auto-switching, and analog audio-breakaway
  • QuickSwitch HD® technology achieves fast, reliable switching
  • Connects to a DM® switcher or receiver over one multimode fiber strand [2]
  • Supports cable lengths up to 1000 ft (300 m) using CresFiber® 8G, or 500 ft (150 m) using other multimode fiber [2]
  • Provides DisplayPort, HDMI®, RGB/component, and composite video inputs [3,5]
  • Also supports DVI sources [4]
  • Handles video resolutions up to Full HD 1080p
  • Handles computer resolutions up to WUXGA
  • Handles 3D video and Deep Color
