Creston DigitalMedia Switcher Chassis

Crestron® DM® Switchers provide the foundation for a complete DigitalMedia™ system, delivering an advanced 4K ultra high-definition AV signal routing solution that’s extremely flexible and installer-friendly.

DigitalMedia thoughtfully manages all of the disparate AV signals and devices to deliver a transparent user experience, and to ensure an optimum video image and audio signal at every location.

DM-MD8X8-CPU3

The DM‑MD8X8‑CPU3 delivers an advanced 4K60 4:4:4 AV signal routing solution to provide the foundation for a complete DigitalMedia™ system. The DM‑MD8X8‑CPU3 affords ultra fast switching and lossless distribution of HDMI® and other signals to support digital media players, HDTV receivers, computers, cameras, and display devices.

The DM‑MD8X8‑CPU3 is configurable to handle up to eight AV sources. The outputs are configurable to provide up to eight DM, HDBaseT®, and/or HDMI outputs, or up to four H.264 streaming outputs, in a single chassis. Based on the 3‑Series® platform, the DM‑MD8X8‑CPU3  provides enterprise‑grade security.

Integrated Ethernet networking and USB distribution provide a complete connectivity solution combined with built‑in Crestron® control for managing the displays and other room devices without any additional wiring. User‑friendly operation, setup, and troubleshooting tools are provided through the DM‑MD8X8‑CPU3 front panel, or via Crestron Toolbox™ software, to allow for easy setup. A web browser interface is also provided.

DM-MD8X8-CPU3 Key Features

  •  Delivers a unified HD signal distribution solution incorporating both point-to-point wired and IP streaming technologies
  •  Provides lossless HD AV signal routing over twisted pair copper wire or fiber
  •  Integrates video, audio, networking, and control over one wire or fiber strand
  •  Enables high-performance H.264 streaming from any input source up to 1080p or WUXGA
  •  Provides a built‑in CONTENT LAN port for streaming
  •  Affords full matrix switching with ultra high 12.5 Gbps backplane data rate
  • Handles HDMI® devices with Deep Color, 3D, 4K, and high‑bitrate 7.1 encoded audio
  •  HDBaseT® Certified device – Enables direct connection to other HDBaseT certified equipment
  • HDCP 2.2 compliant via 4K input and output cards

DM-MD16X16-CPU3

The DM-MD16X16-CPU3 delivers an advanced 4K60 4:4:4 AV signal routing solution to provide the foundation for a complete DigitalMedia™ system. The DM-MD16X16-CPU3 affords ultra fast switching and lossless distribution of HDMI® and other signals to support digital media players, HDTV receivers, computers, cameras, and display devices.

The DM-MD16X16-CPU3 is configurable to handle up to 16 AV sources. The outputs are configurable to provide up to 16 DM, HDBaseT®, and/or HDMI outputs, or up to 8 H.264 streaming outputs, in a single chassis. Based on the 3‑Series® platform, the  DM‑16X16‑CPU3 provides enterprise‑grade security.

DM-MD16X16-CPU3 Key Features

  • Delivers a unified HD signal distribution solution incorporating both point-to-point wired and IP streaming technologies
  •  Provides lossless HD AV signal routing over twisted pair copper wire or fiber
  •  Integrates video, audio, networking, and control over one wire or fiber strand
  •  Enables high-performance H.264 streaming from any input source up to 1080p or WUXGA
  •  Provides a built‑in CONTENT LAN port for streaming
  •  Affords full matrix switching with ultra high 12.5 Gbps backplane data rate
  • Handles HDMI® devices with Deep Color, 3D, 4K, and high‑bitrate 7.1 encoded audio
  • HDBaseT® Certified device — Enables direct connection to other HDBaseT certified equipment

DM-MD32X32-CPU3

The DM‑MD32X32‑CPU3 delivers an advanced 4K60 4:4:4 AV signal routing solution to provide the foundation for a complete DigitalMedia™ system. The DM‑MD32X32‑CPU3 affords ultra fast switching and lossless distribution of HDMI® and other signals to support digital media players, HDTV receivers, computers, cameras, and display devices.

The DM‑MD32X32‑CPU3 is configurable to handle up to 32 AV sources. The outputs are configurable to provide up to 32 DM, HDBaseT®, and/or HDMI outputs, or up to 16 H.264 streaming outputs, in a single chassis. Based on the 3‑Series® platform, the  DM‑MD32X32‑CPU3 provides enterprise‑grade security.

DM-MD32X32-CPU3 Key Features

  • Delivers a unified HD signal distribution solution incorporating both point-to-point wired and IP streaming technologies
  •  Provides lossless HD AV signal routing over twisted pair copper wire or fiber
  •  Integrates video, audio, networking, and control over one wire or fiber strand
  •  Enables high-performance H.264 streaming from any input source up to 1080p or WUXGA
  •  Provides a built‑in CONTENT LAN port for streaming
  •  Affords full matrix switching with ultra high 12.5 Gbps backplane data rate
  • Handles HDMI® devices with Deep Color, 3D, 4K, and high‑bitrate 7.1 encoded audio

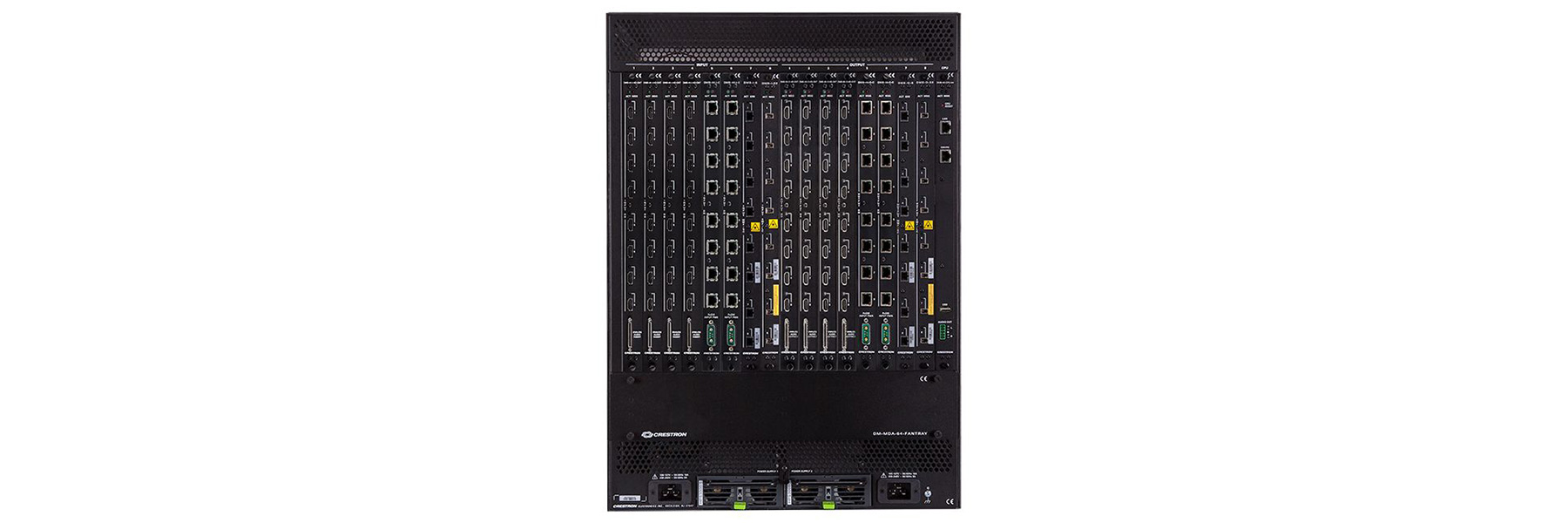

DM-MD64X64

A modular blade-based 64×64 DigitalMedia matrix switcher offering ultra-fast digital video and audio switching for massive signal routing applications. Enables lossless HD signal distribution over CAT type twisted pair copper or fiber optic cable.

Provides complete management for SD, HD, UHD, 2K, 4K, and computer signals with advanced HDCP support, EDID resolution management, CEC signal management, USB signal routing, integrated Ethernet switch, and a range of selectable input and output types. Hot-swappable redundant power supplies ensure ultimate reliability for mission-critical projects.

DM-MD64X64 Key Features

  • Provides lossless HD AV signal routing over twisted pair copper wire or fiber
  • Integrates video, audio, networking, and control over one wire or fiber strand
  • Modular design configurable in blades of 8 inputs or outputs
  • Enables full matrix switching scalable from 8×8 to 64×64
  • Handles HDMI® with Deep Color, 3D, 4K, and high-bitrate 7.1 encoded audio
  • HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
  • HDCP 2.2 compliant via compatible 4K input and output blades
  • Supports up to 64 DM 8G® transmitters and 64 DM 8G receivers

DM-MD8X8-CPU3-RPS

A fully modular and expandable 8×8 DigitalMedia matrix switcher featuring redundant power supplies for mission critical applications. Based on the 3-Series® platform. Offers ultra-fast digital video and audio switching and lossless HD multiroom signal distribution for all types of AV sources. Provides complete management of SD, HD, UHD, 2K, 4K60 4:4:4 HDR, and computer signals with advanced HDCP support, EDID resolution management, CEC signal management, USB signal routing, integrated Ethernet switch, simultaneous 7.1 and stereo audio, H.264 streaming, and a full range of selectable input and output types.

DM-MD8X8-CPU3-RPS Key Features

  • Delivers a unified HD signal distribution solution incorporating both point-to-point wired and IP streaming technologies
  •  Provides lossless HD AV signal routing over twisted pair copper wire or fiber
  •  Integrates video, audio, networking, and control over one wire or fiber strand
  •  Enables high-performance H.264 streaming from any input source up to 1080p or WUXGA
  •  Provides a built‑in CONTENT LAN port for streaming
  •  Affords full matrix switching with ultra high 12.5 Gbps backplane data rate
  • Handles HDMI® devices with Deep Color, 3D, 4K, and high‑bitrate 7.1 encoded audio
  •  HDBaseT® Certified device – Enables direct connection to other HDBaseT certified equipment
  • HDCP 2.2 compliant via 4K input and output cards

DM-MD16X16-CPU3-RPS

The DM‑MD16X16‑CPU3‑RPS delivers an advanced 4K60 4:4:4 AV signal routing solution to provide the foundation for a complete DigitalMedia™ system. The DM‑MD16X16‑CPU3‑RPS affords ultra fast switching and lossless distribution of HDMI® and other signals to support digital media players, HDTV receivers, computers, cameras, and display devices. The DM‑MD16X16‑CPU3‑RPS is an enhanced version of the DM‑MD16X16‑CPU3 featuring two built‑in redundant power supplies.

The DM‑MD16X16‑CPU3‑RPS is configurable to handle up to 16 AV sources. The outputs are configurable to provide up to 16 DM, HDBaseT®, and/or HDMI outputs, or up to 8 H.264 streaming outputs, in a single chassis.1 Based on the 3‑Series® platform, the  DM‑MD16X16‑CPU3‑RPS provides enterprise‑grade security.

Integrated Ethernet networking and USB distribution provide a complete connectivity solution combined with built‑in Crestron® control 2 for managing the displays and other room devices without any additional wiring. User‑friendly operation, setup, and troubleshooting tools are provided through the DM‑MD16X16‑CPU3‑RPS front panel, or via Crestron Toolbox™ software, to allow for easy setup. A web browser interface is also provided.3

DM-MD16X16-CPU3-RPS Key Features

  • HDBaseT® Certified device — Enables direct connection to other HDBaseT certified equipment
  • HDCP 2.2 compliant via 4K input and output cards
  • Distributes Full HD 1080p, Ultra HD, and 4K signals via DM 8G+® and HDBaseT connectivity
  • Distributes 1080p and WUXGA signals over via DM 8G® Fiber or via DM 8G® SM Fiber
  •  Allows streaming of 1080p signals over an IP network with no distance limitations
  • Supports first‑generation DM® CAT and DM® Fiber products
  •  Configurable with up to 16 DM, HDBaseT, and/or HDMI outputs
  • Configurable with up to 8 streaming outputs
  •  Easy output expansion using multiple DM switchers

DM-MD32X32-CPU3-RPS

The DM‑MD32X32‑CPU3‑RPS is configurable to handle up to 32 AV sources. The outputs are configurable to provide up to 32 DM, HDBaseT®, and/or HDMI outputs, or up to 16 H.264 streaming outputs, in a single chassis. Based on the 3‑Series® platform, the   provides enterprise‑grade security.

DM-MD32X32-CPU3-RPS Key Features

  • Affords full matrix switching with ultra high 12.5 Gbps backplane data rate
  • Handles HDMI® devices with Deep Color, 3D, 4K, and high‑bitrate 7.1 encoded audio
  •  HDBaseT® Certified device — Enables direct connection to other HDBaseT certified equipment
  • HDCP 2.2 compliant via 4K input and output cards
  • Distributes Full HD 1080p, Ultra HD, and 4K signals via DM 8G+® and HDBaseT connectivity
  • Distributes 1080p and WUXGA signals over via DM 8G® Fiber or via DM 8G® SM Fiber
  •  Allows streaming of 1080p signals over an IP network with no distance limitations
  • Supports first‑generation DM® CAT and DM® Fiber products
  •  Configurable with up to 32 DM, HDBaseT, and/or HDMI outputs
  • Configurable with up to 16 streaming outputs

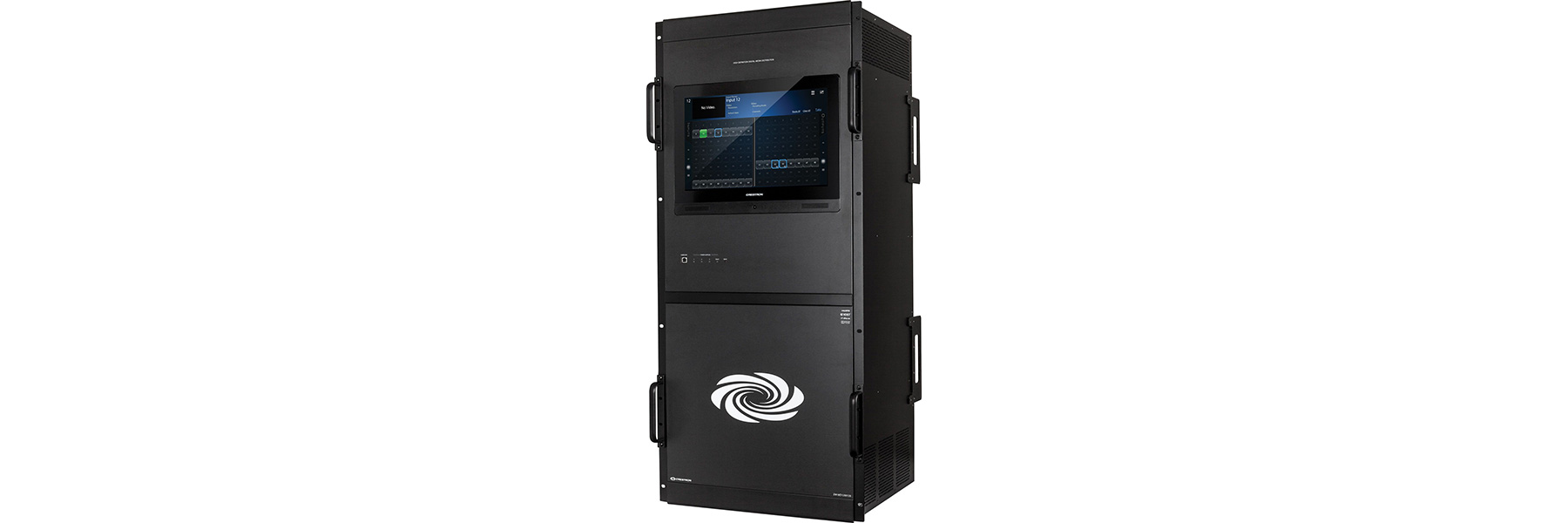

DM-MD128X128

Featuring a scalable blade-based design, the DM-MD128X128 affords maximum input and output count in a condensed 24U rack-mountable chassis. The DM-MD128X128 is field-configurable to handle up to 128 inputs and 128 outputs, supporting HDMI, HDBaseT®, analog audio, Dante® networked audio, and all types of DigitalMedia 8G™ signals. Through a selection of hot-swappable input and output blades, and a variety of DM 8G® transmitters and receivers, the DM-MD128X128 allows extensive connectivity throughout a commercial or residential facility, supporting a wide range of signal types all through one switcher!

Integrated Ethernet networking and USB distribution provide a complete connectivity solution combined with built-in Crestron control for managing the displays and other room devices without necessitating any additional wiring. Hot-swappable redundant power supplies and advanced system-wide monitoring ensure continuous, dependable operation for mission-critical applications. User-friendly operation, setup, and troubleshooting tools are provided through the front panel touch screen or web browser interface to make setting up a complete multiroom 4K video distribution system easy.

DM-MD128X128 Key Features

  • Provides lossless HD AV signal routing over twisted pair copper wire or fiber
  • Integrates video, audio, networking, and control over one wire or fiber strand
  • Modular design configurable in blades of 8 inputs or outputs
  • Enables full matrix switching scalable from 8×8 to 128×128
  • Handles HDMI® with Deep Color, 3D, 4K, and high-bitrate 7.1 encoded audio
  • HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
  • HDCP 2.2 compliant via compatible 4K input and output blades
  • Supports up to 128 DM 8G® transmitters and 128 DM 8G receivers
  • Distributes Full HD 1080p, Ultra HD, and 4K signals over CAT type twisted pair cable at distances up to 330 ft (100 m) via DM 8G+® and HDBaseT
  • Distributes 1080p and WUXGA signals over multimode fiber at distances up to 1000 ft (300 m) via DM 8G® Fiber

DM-PSU-16-PLUS

16-Port PoDM+ Power Supply for DM 8G+® I/O Cards

Power over DM® (PoDM) is a feature of Crestron® DigitalMedia 8G+® technology that enables many DM 8G+® transmitters and receivers to be powered over the same CATx cable that carries their video, audio, and data signals. Using PoDM affords a one-wire interface solution, and eliminates the need to install a bulky power pack at every transmitter and receiver location.

The DM-PSU-16-PLUS supplies power for up to sixteen PoDM, PoDM+, HDBaseT® PoE, or HDBaseT PoE+ powered devices. It is designed to install at the central switcher location, occupying just a single rack space and requiring just one AC power outlet. Each of its sixteen POWER ports connects to the POE IN port of a DMC-Series DM 8G+ type input or output card (refer to the Specifications for compatible card models). Connection between the DM-PSU-16-PLUS and switcher requires one CAT5e patch cable with RJ45 connectors per port (cables and connectors not included).[2]

The DM-PSU-16-PLUS supplies a full 30 Watts per port to handle Class 4 PoDM+ and HDBaseT PoE+ powered devices. It is also compatible with regular Class 0-3 PoDM and HDBaseT PoE powered devices. Front panel LEDs indicate when each port is supplying power to a compatible device.[1]

Key Features DM-PSU-16-PLUS

  • Provides a centralized power source for up to 16 PoDM+ powered devices
  • Also compatible with HDBaseT® PoE+, as well as regular PoDM and HDBaseT PoE powered devices
  • Designed for use with any card-based DigitalMedia™ switcher with DM 8G+® I/O cards installed
  • Supplies 30 Watts per port
  • Includes front panel indicators for easy troubleshooting
  • Single-space 19” rack-mountable
  • Internal 100-240V universal power supply
