Creston Control Hardware

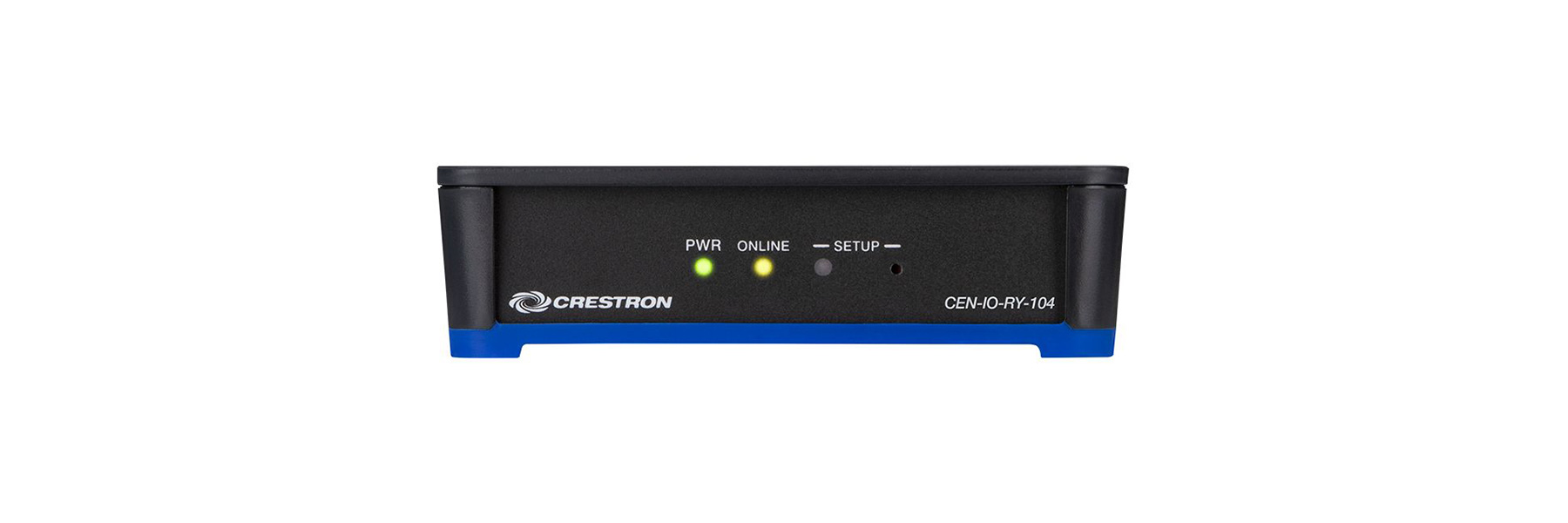

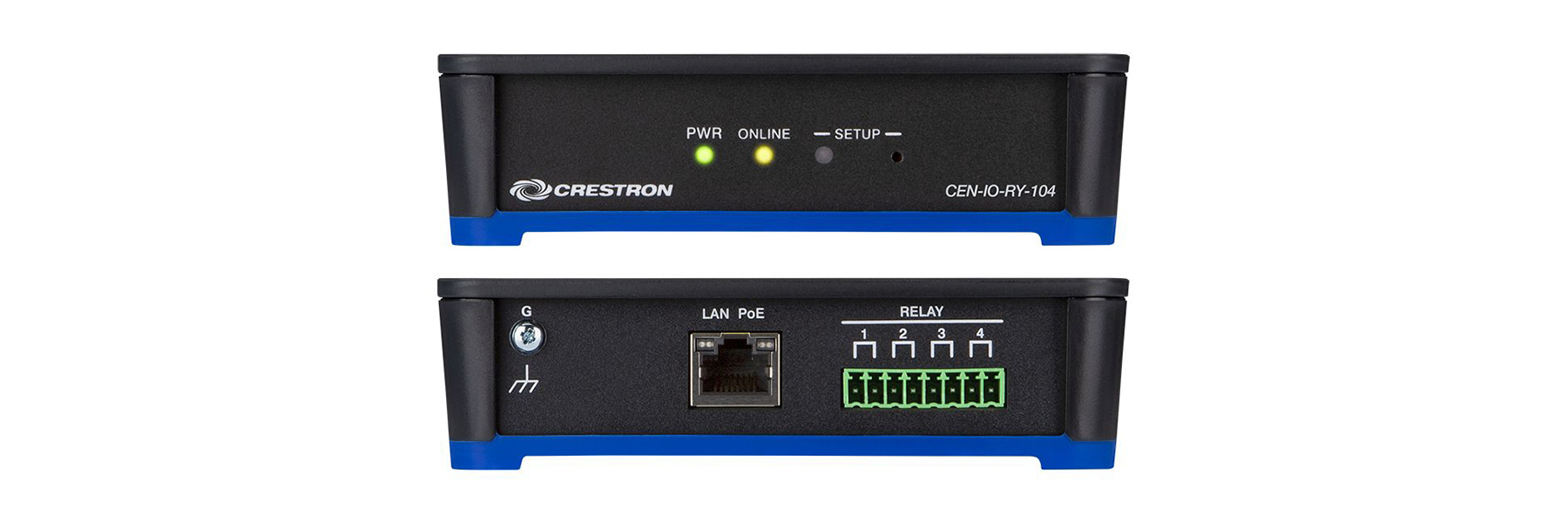

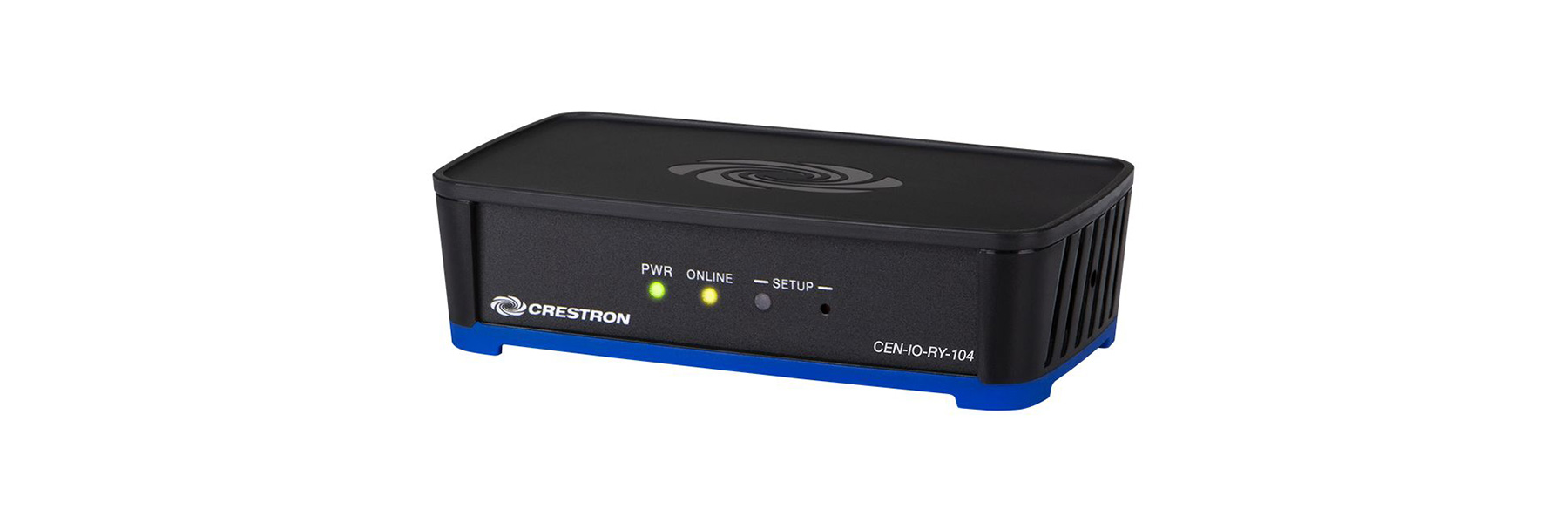

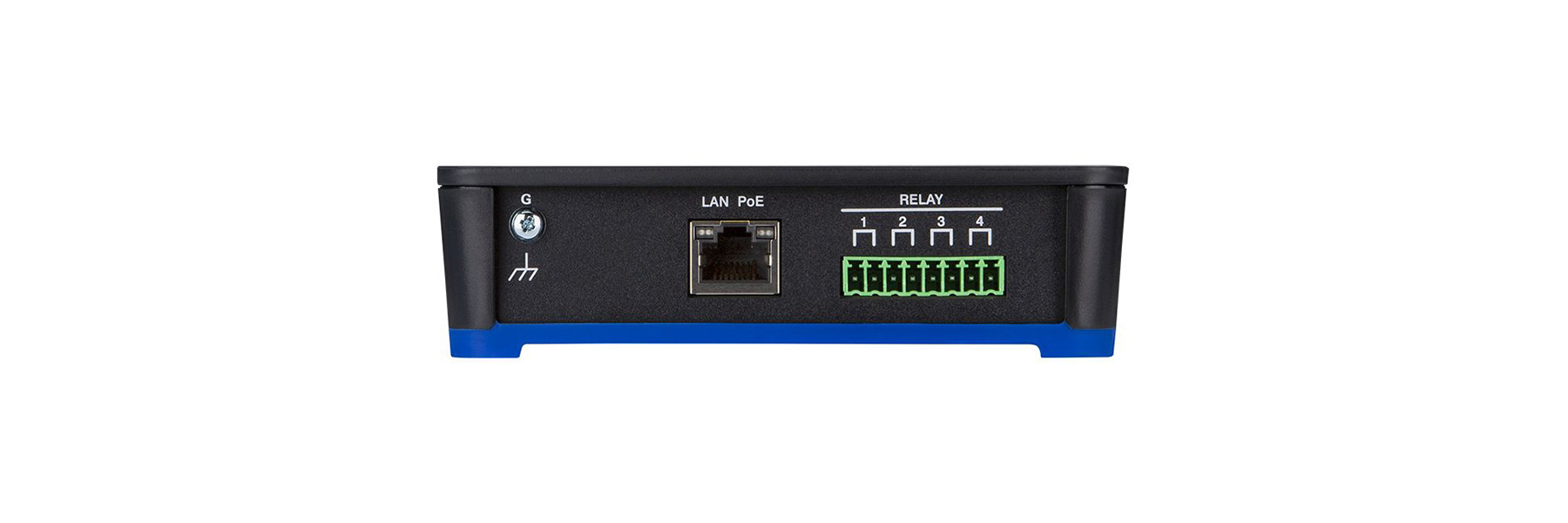

Creston CEN-IO-RY-104

The Crestron® CEN-IO-RY-104 is a compact and cost-effective wired I/O module designed to easily expand the available relay ports within a commercial or residential system. A small form factor allows the CEN-IO-RY-104 to be placed just about anywhere, with the option to attach it to a flat surface or DIN rail using the included mounting bracket. The four onboard relay ports enable direct integration with all kinds of third-party equipment.

The CEN-IO-RY-104 communicates to the local network using the available LAN connection, allowing the connected equipment to be remotely controlled and monitored from a computer or tablet. Power is conveniently supplied to the CEN-IO-RY-104 via PoE (Power over Ethernet) or a Crestron control system, eliminating the need for a local power supply or extra wiring.

Creston CEN-IO-RY-104 Key Features

  • Compact, cost-effective wired Ethernet I/O module
  • Provides four relay ports
  • Installer setup via Crestron Toolbox software or web browser
  • Supports TLS 1.2, Local Authentication, and SSL security protocols
  • PoE (Power over Ethernet) network powered
  • Compact, stackable “IFE micro” form factor
  • Surface or DIN rail mountable
  • Available rack mount and pole mount options

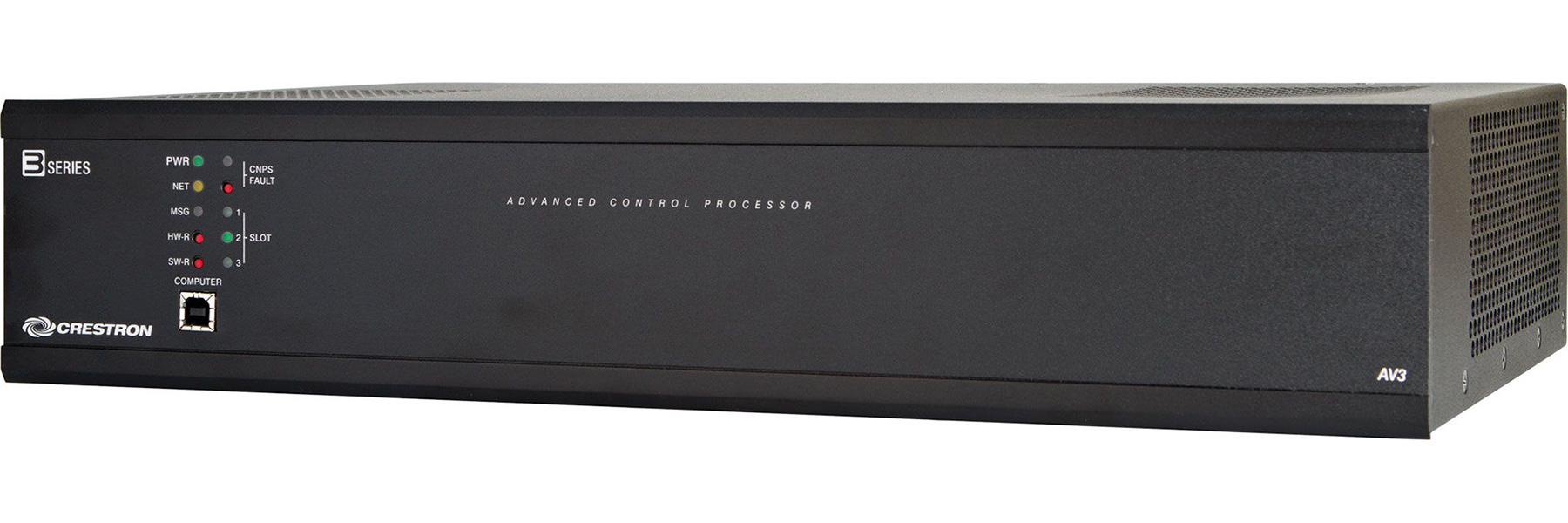

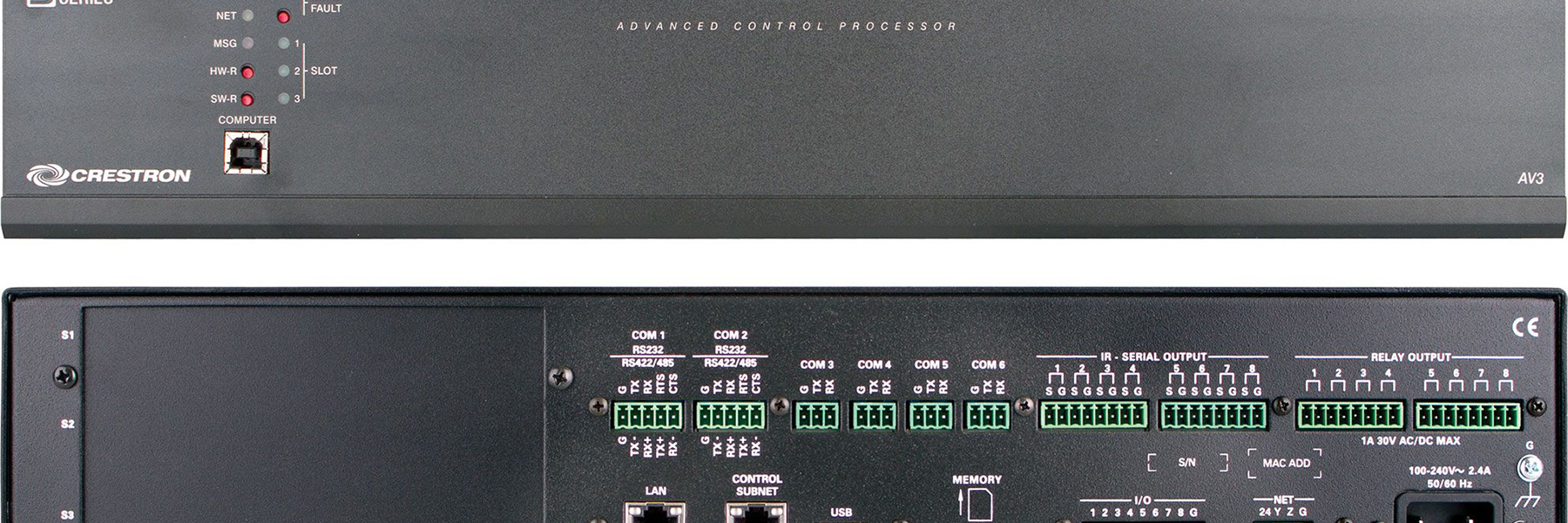

Creston AV3

The Crestron® AV3 is an enterprise-class control system with an enhanced feature set including built-in control card expansion slots and a dedicated Control Subnet port. Featuring the 3-Series® control engine, the AV3 forms the core of any modern networked home or commercial building, managing and integrating all the disparate technologies throughout your facility to make life easier, greener, more productive, and more enjoyable.

Today’s commercial buildings and custom homes comprise more technology than ever before, and all these systems need to be networked, managed, and controlled in fundamentally new ways. The IP based 3-Series platform is engineered from the ground up to deliver a network-grade server appliance capable of faithfully handling everything from boardroom AV and home theater control to total building management.

3-Series embodies a distinctively robust, dynamic, and secure platform to elevate your system designs to higher levels of performance and reliability. Compared to other control systems, Crestron 3-Series provides a pronounced increase in processing power and speed with more memory, rock solid networking and IP control, and a unique modular programming architecture.

Creston AV3 Key Features

  • Enterprise-class control system
  • 3-Series® Control Engine — substantially faster and more powerful than other control systems
  • Exclusive modular programming architecture
  • Onboard 1GB RAM & 4GB Flash memory
  • Expandable storage up to 1TB
  • Rear panel memory card slot
  • High-speed USB 2.0 host port
  • Industry-standard Ethernet and Cresnet® wired communications
  • Control Subnet — provides a dedicated local network for Crestron® devices
  • XPanel with Smart Graphics computer and web based control

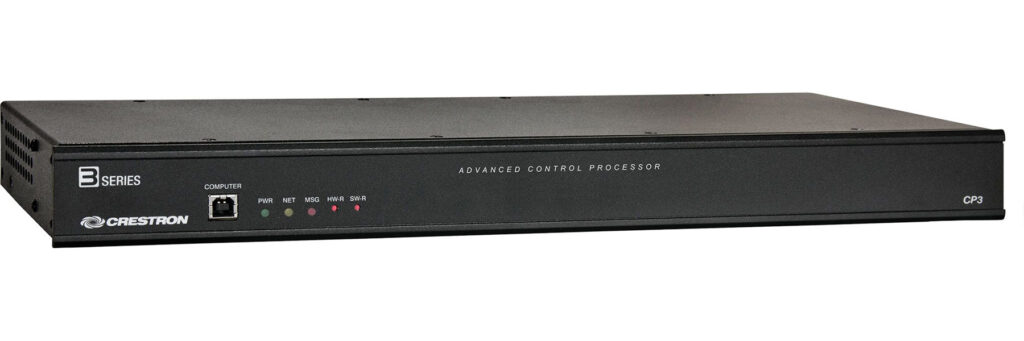

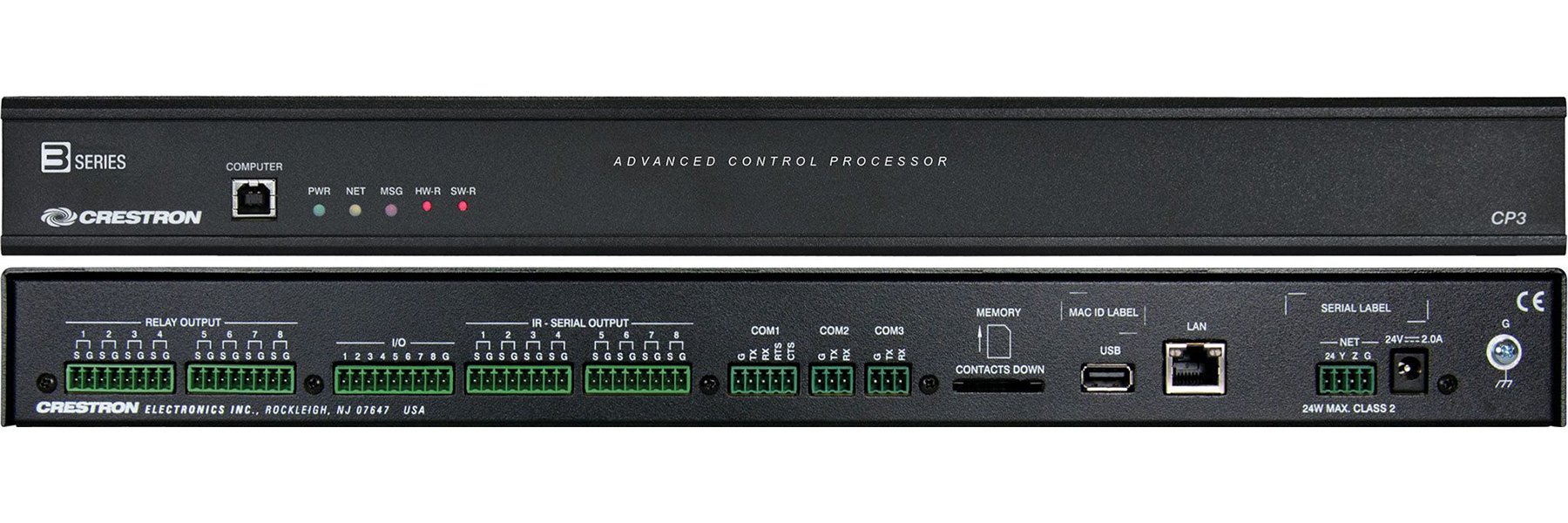

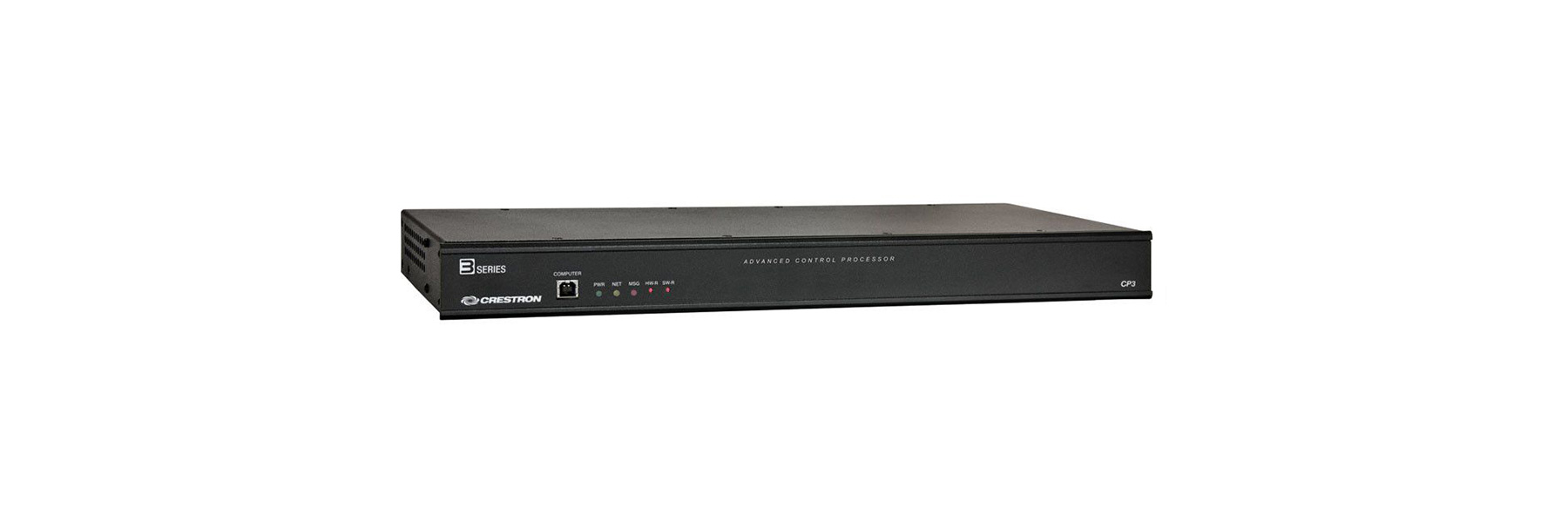

Creston CP3

The Crestron® CP3 is an enterprise-class control system for residential, commercial, and government applications. Featuring the 3-Series® control engine, the CP3 forms the core of any modern networked home or commercial building, managing and integrating all the disparate technologies throughout your facility to make life easier, greener, more productive, and more enjoyable.

Designed for enhanced scalability, the CP3 affords high-speed, real-time multi-tasking to seamlessly run multiple programs simultaneously. This exclusive modular programming architecture lets programmers independently develop and run device-specific programs for AV, lighting, shades, HVAC, security, etc., allowing for the optimization of each program, and allowing changes to be made to one program without affecting the whole. Even as your system grows, processing resources can easily be shifted from one 3-Series processor to another without rewriting any code. The end benefit is dramatically simplified upgradability with minimal downtime, whether implementing changes on site or remotely via the network.

Creston CP3 Key Features

  • Enterprise-class control system
  • 3-Series® Control Engine — substantially faster and more powerful than other control systems
  • Exclusive modular programming architecture
  • Onboard 512MB RAM & 4GB Flash memory
  • Expandable storage up to 1TB
  • Rear panel memory card slot
  • High-speed USB 2.0 host port

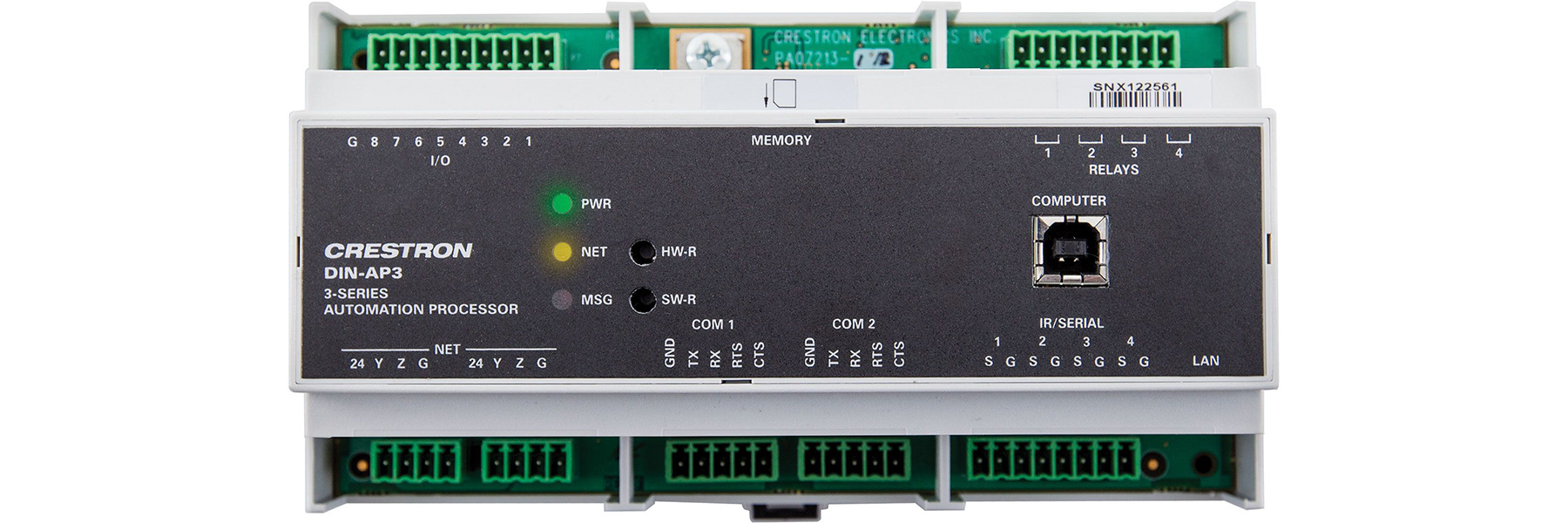

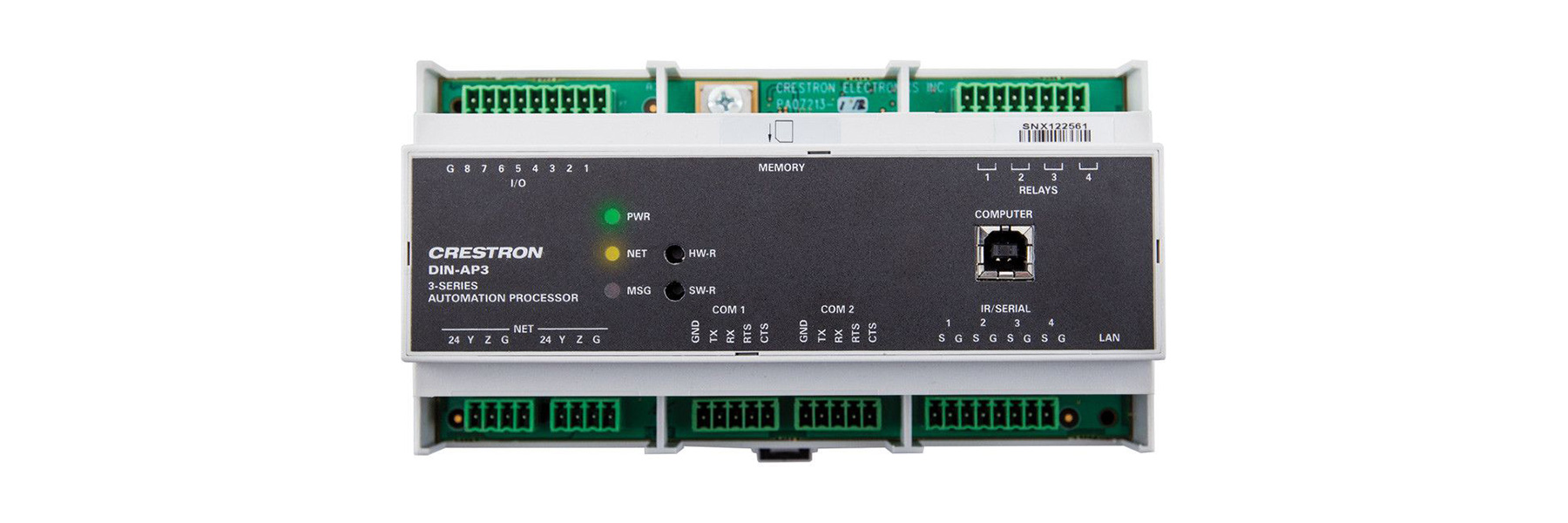

Creston DIN-AP3

The DIN-AP3 is a Crestron® 3-Series Control System® designed for DIN rail mounting applications. It includes built-in control ports, high-speed Ethernet, Cresnet®, and BACnet/IP support. DIN rail mounting affords a very space-efficient, cost-effective, and modular solution for configuring complete automation systems using the DIN-AP3 along with additional Crestron and third-party DIN rail mountable devices.

The Crestron® DIN-AP3 is a 3-Series Control System® designed for DIN rail mounting applications. Featuring the 3-Series® control engine, the DIN-AP3 forms the core of any modern networked home or commercial building, managing and integrating all the disparate technologies throughout the facility to make life easier, greener, more productive, and more enjoyable.

The DIN-AP3 is designed to snap onto a standard DIN rail for installation in a wall mount enclosure (Crestron DIN-EN series [1] or similar) or on a wall panel. DIN rail mounting affords a very space-efficient, cost-effective, and modular solution for configuring complete automation systems using the DIN-AP3 along with additional Crestron and third-party DIN rail mountable devices.

Creston DIN-AP3 Key Features

  • Enterprise-class control system
  • 3-Series® Control Engine — substantially faster and more powerful than other control systems
  • Exclusive modular programming architecture
  • Programmable astronomical time clock for scheduled events
  • Onboard 256MB RAM & 4GB Flash memory
  • Memory card slot
  • Industry-standard Ethernet and Cresnet® wired communications
  • XPanel with Smart Graphics computer and web based control
  • iPhone®, iPad®, and Android control app support
  • Crestron Fusion® Cloud Enterprise Management Service support

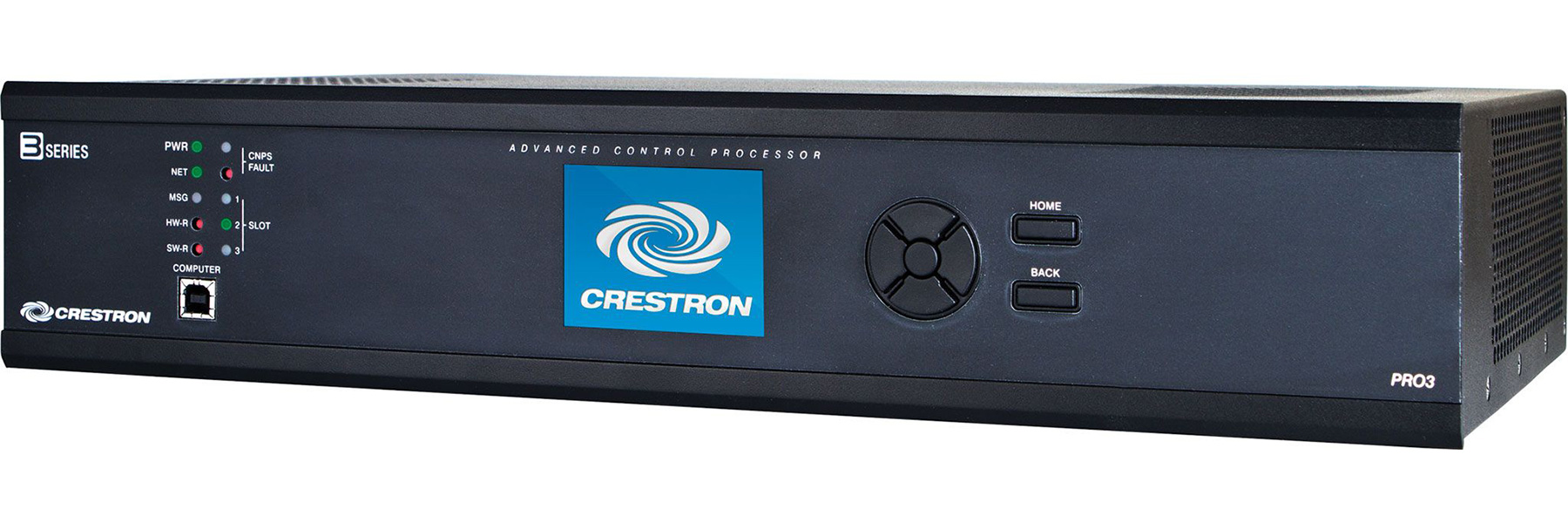

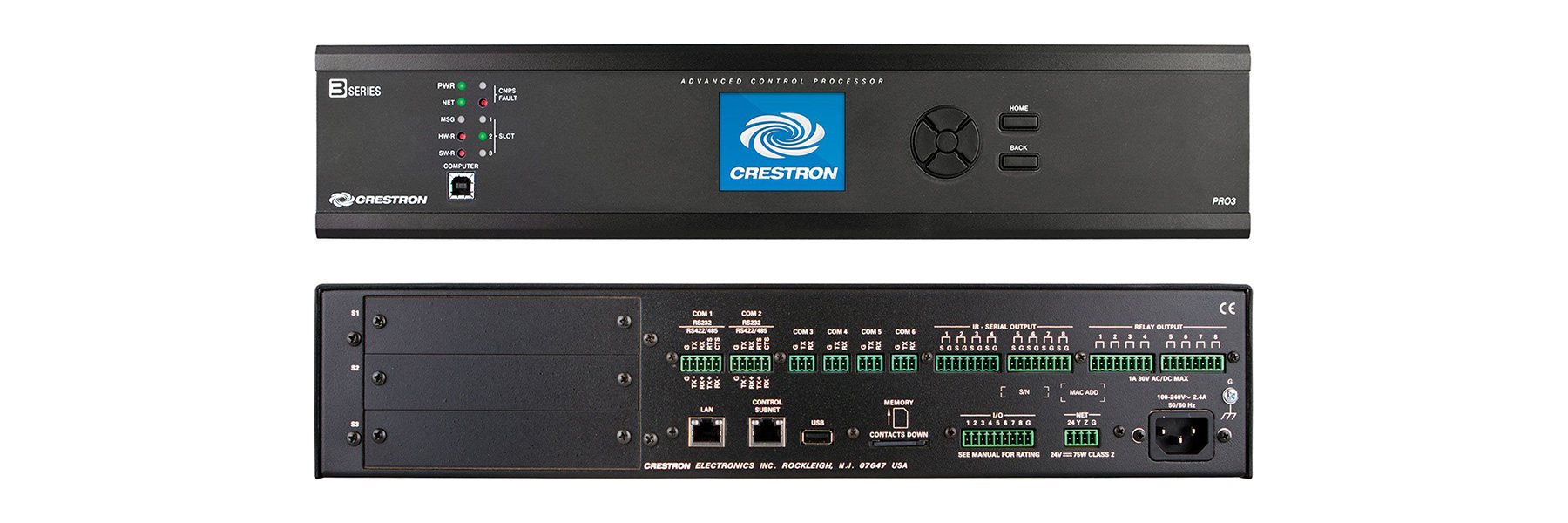

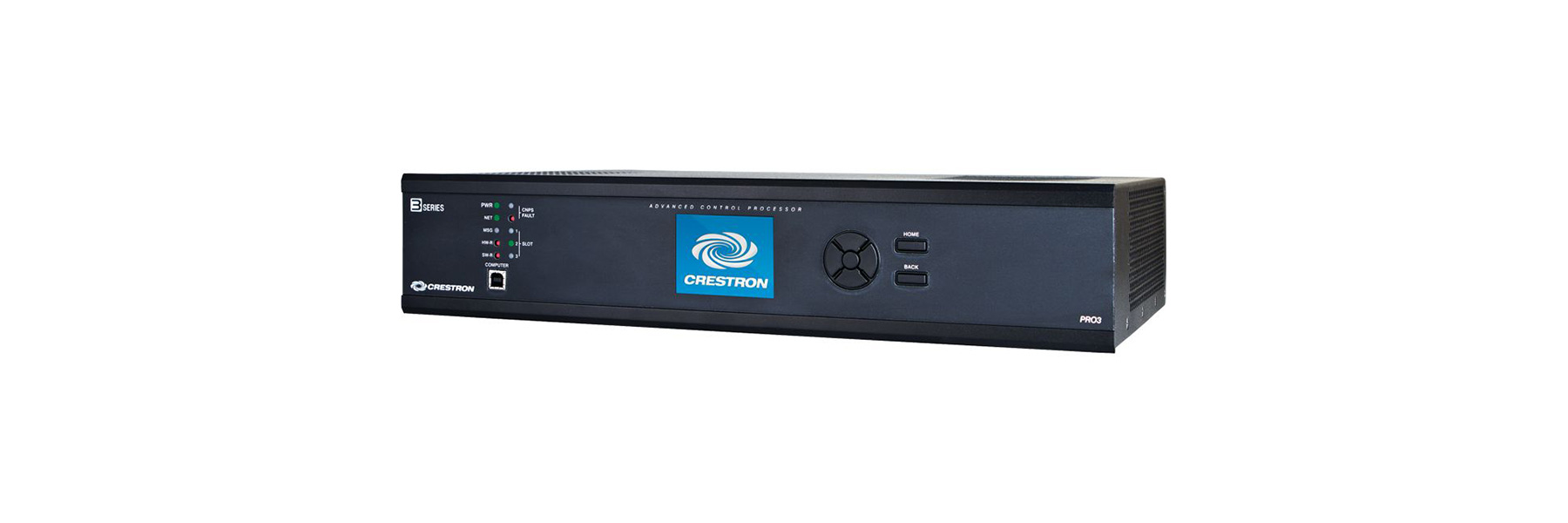

Creston PRO3

The flagship Crestron® PRO3 is an enterprise-class control system with an enhanced feature set including a front panel color LCD display, built-in control card expansion slots, and a dedicated Control Subnet port. Featuring the 3-Series® control engine, the PRO3 forms the core of any modern networked home or commercial building, managing and integrating all the disparate technologies throughout your facility to make life easier, greener, more productive, and more enjoyable.

Designed for enhanced scalability, the PRO3 affords high-speed, real-time multi-tasking to seamlessly run multiple programs simultaneously. This exclusive modular programming architecture lets programmers independently develop and run device-specific programs for AV, lighting, shades, HVAC, security, etc., allowing for the optimization of each program, and allowing changes to be made to one program without affecting the whole. Even as your system grows, processing resources can easily be shifted from one 3-Series processor to another without rewriting any code. The end benefit is dramatically simplified upgradability with minimal downtime, whether implementing changes on site or remotely via the network.

Creston PRO3 Key Features

  • 3-Series® Control Engine — substantially faster and more powerful than other control systems
  • Exclusive modular programming architecture
  • Onboard 1GB RAM & 4GB Flash memory
  • Expandable storage up to 1TB
  • Rear panel memory card slot
  • High-speed USB 2.0 host port
  • Industry-standard Ethernet and Cresnet® wired communications
  • Control Subnet — provides a dedicated local network for Crestron® devices
  • XPanel with Smart Graphics computer and web based control
  • iPhone®, iPad®, and Android control app support
  • Crestron Fusion® Cloud Enterprise Management Service support
  • SNMP remote management support

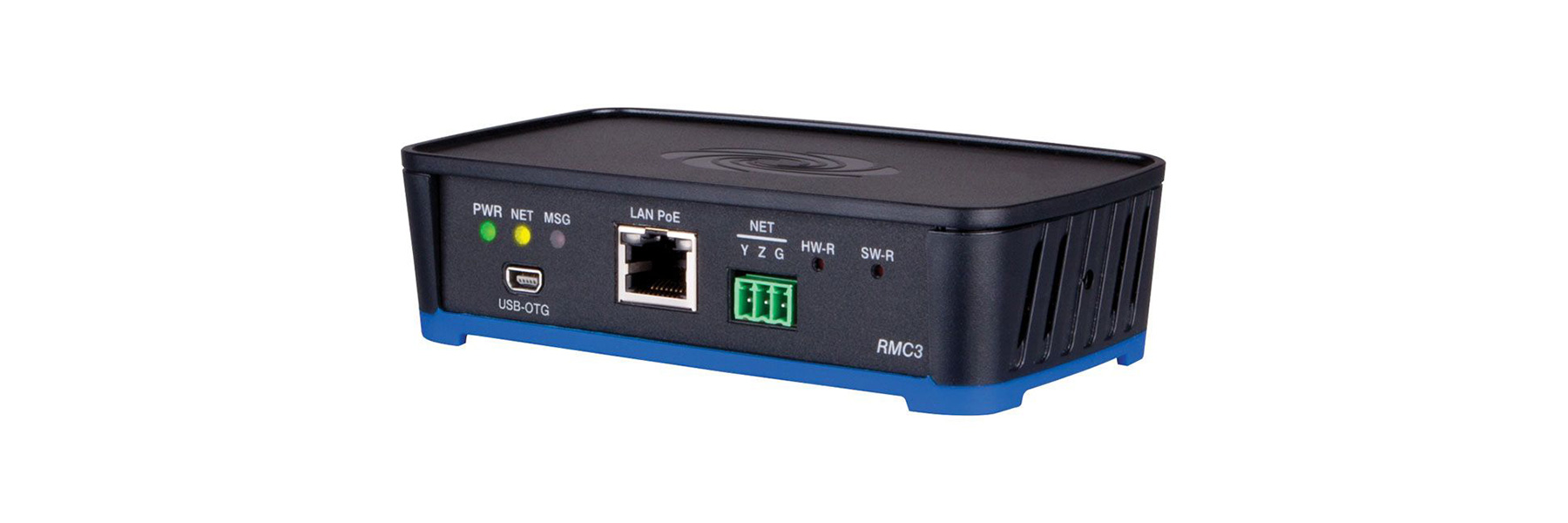

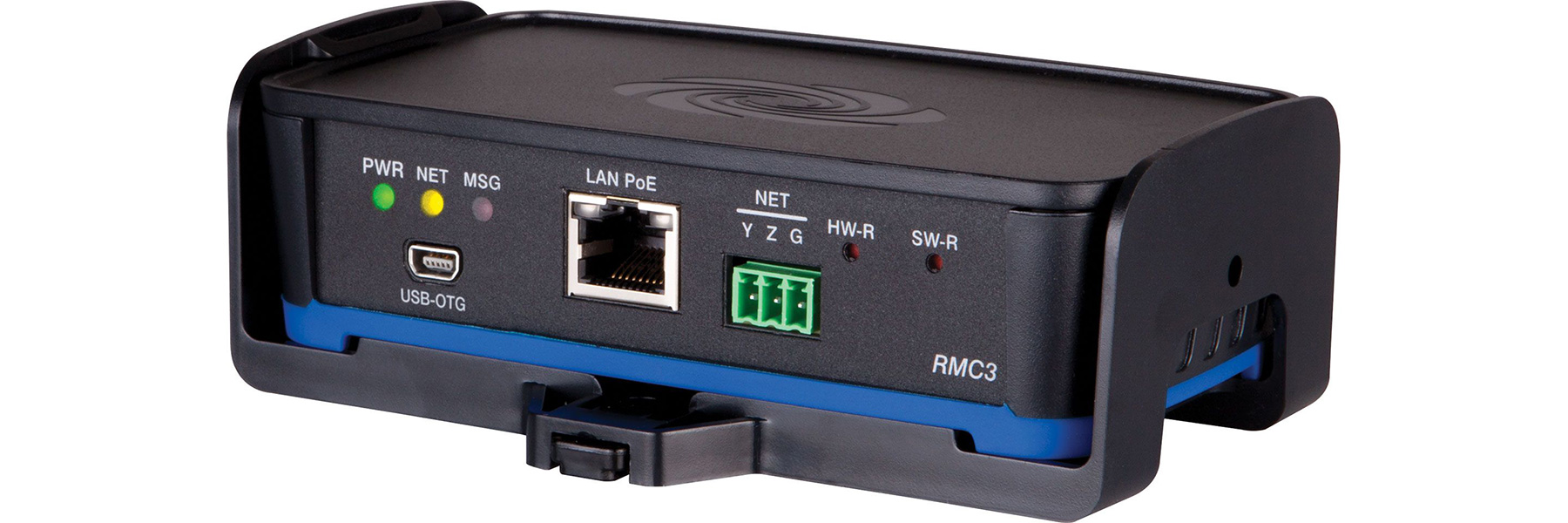

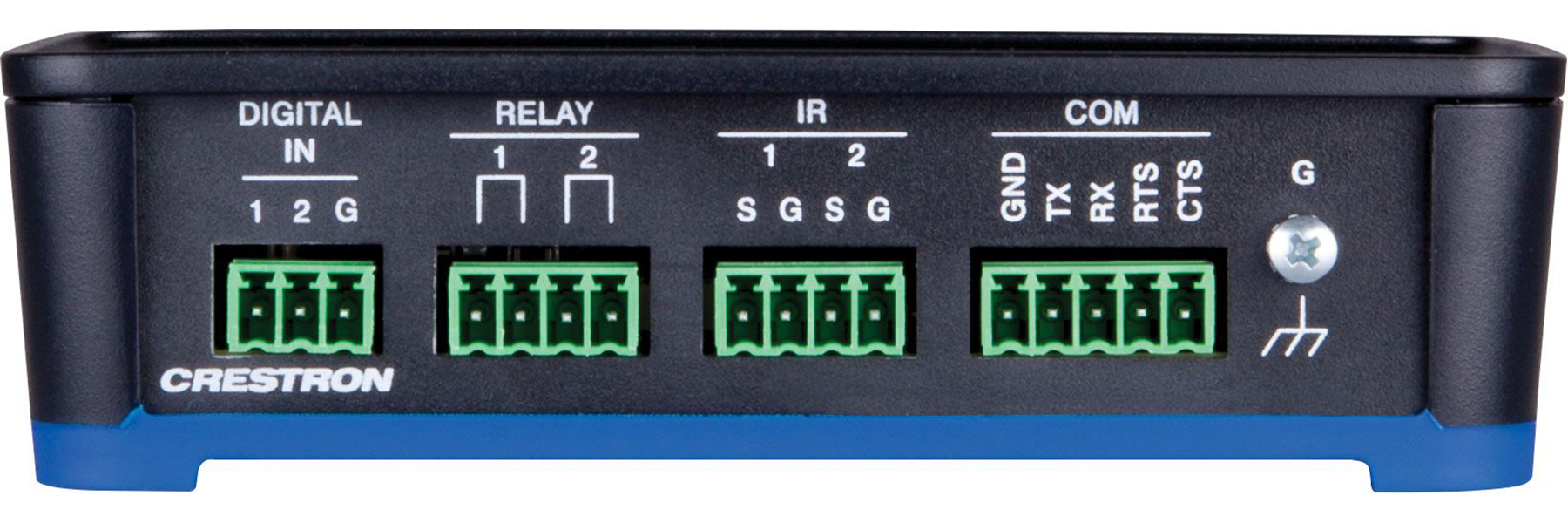

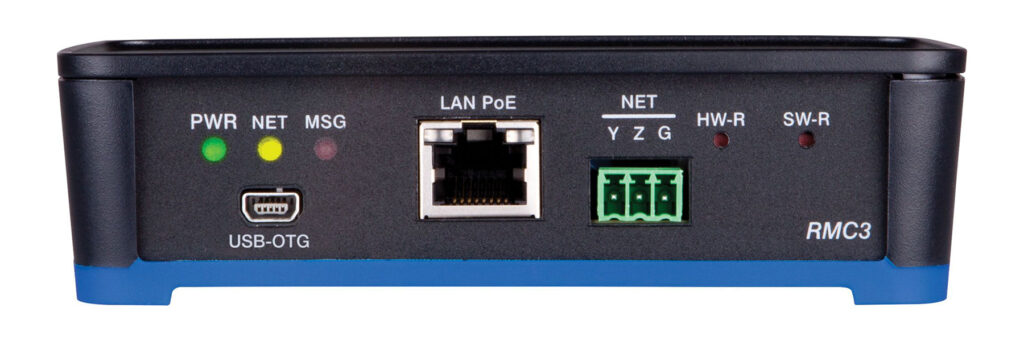

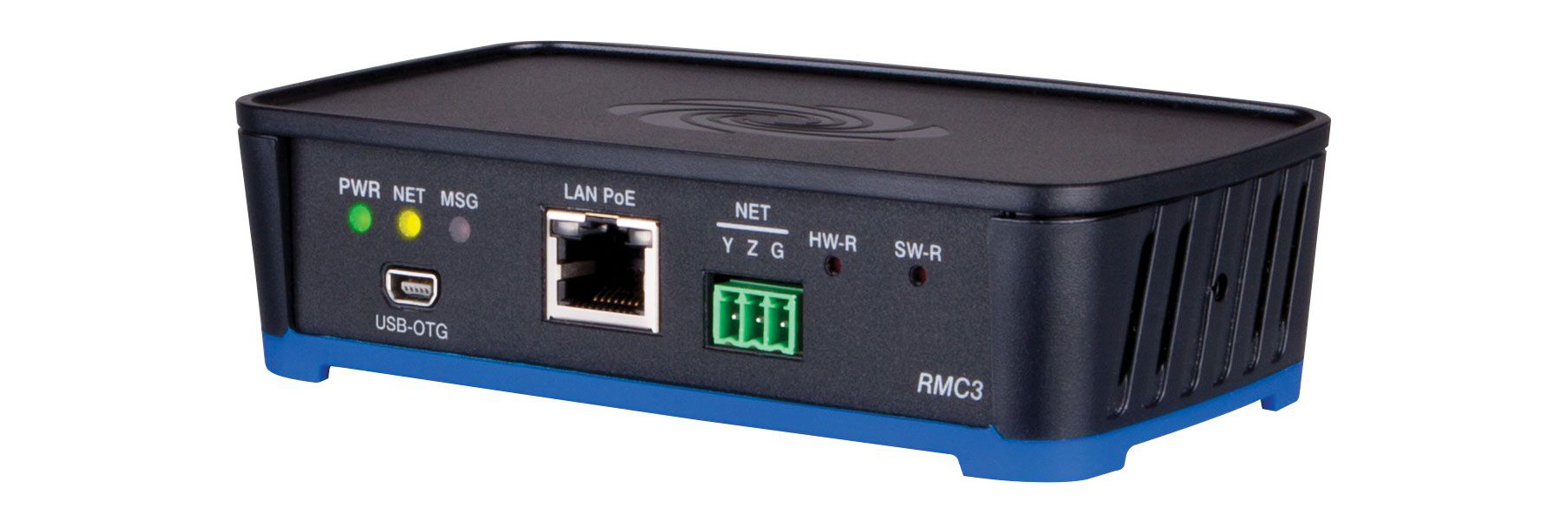

Creston RMC3

An extremely compact 3-Series® control processor featuring the Crestron IFE micro form factor. Fits almost anywhere to suit a variety of specialized applications.

The Crestron® RMC3 is a compact and cost-effective 3-Series Control System® designed to provide control and monitoring for a single display device, a small AV system, lighting and shading, climate control, security, energy management, and many other specialized applications. Its tiny form factor allows it to be placed just about anywhere with the option to attach it to a flat surface or DIN rail using the mounting bracket provided. It can fit easily behind a video display or above a projector, and provides enough control ports to control the display device along with a screen or lift.

Cresnet® and Ethernet connectivity provides full support for the full line of Crestron touch screens, keypads, dimmers, shades, thermostats, and other peripherals. Featuring the 3-Series® control engine, the RMC3 provides a robust, feature-packed controller that’s ideal for mass deployment across college campuses, corporate office buildings, museums, MDUs, hotels, and convention centers.

Creston RMC3 Key Features

  • Compact and cost-effective control system
  • 3-Series® Control Engine
  • Modular programming architecture (optional [1])
  • Onboard 256MB RAM & 4GB Flash memory
  • Support for external USB flash memory and mass storage devices
  • Industry-standard Ethernet and Cresnet® wired communications
  • XPanel with Smart Graphics computer and web based control
  • iPhone®, iPad®, and Android control app support
  • Crestron Fusion® Cloud Enterprise Management Service support
  • SNMP remote management support
  • One RS-232/422/485 COM port with hardware and software handshaking
  • Two IR/serial, two relay, and two digital input ports

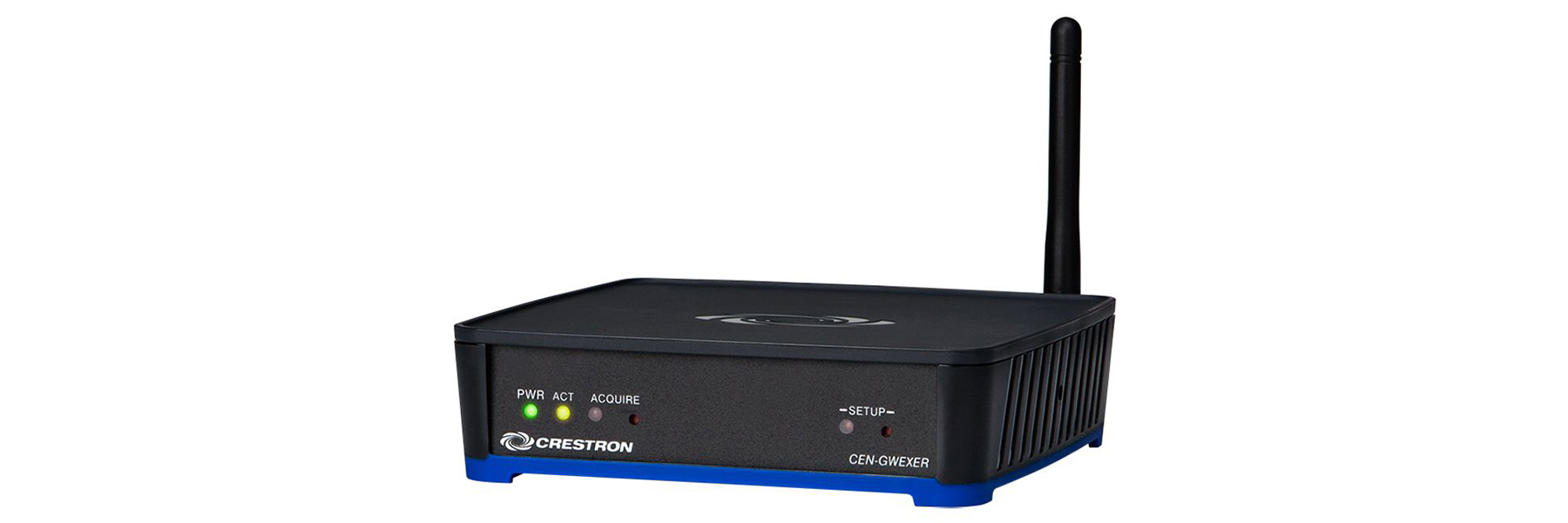

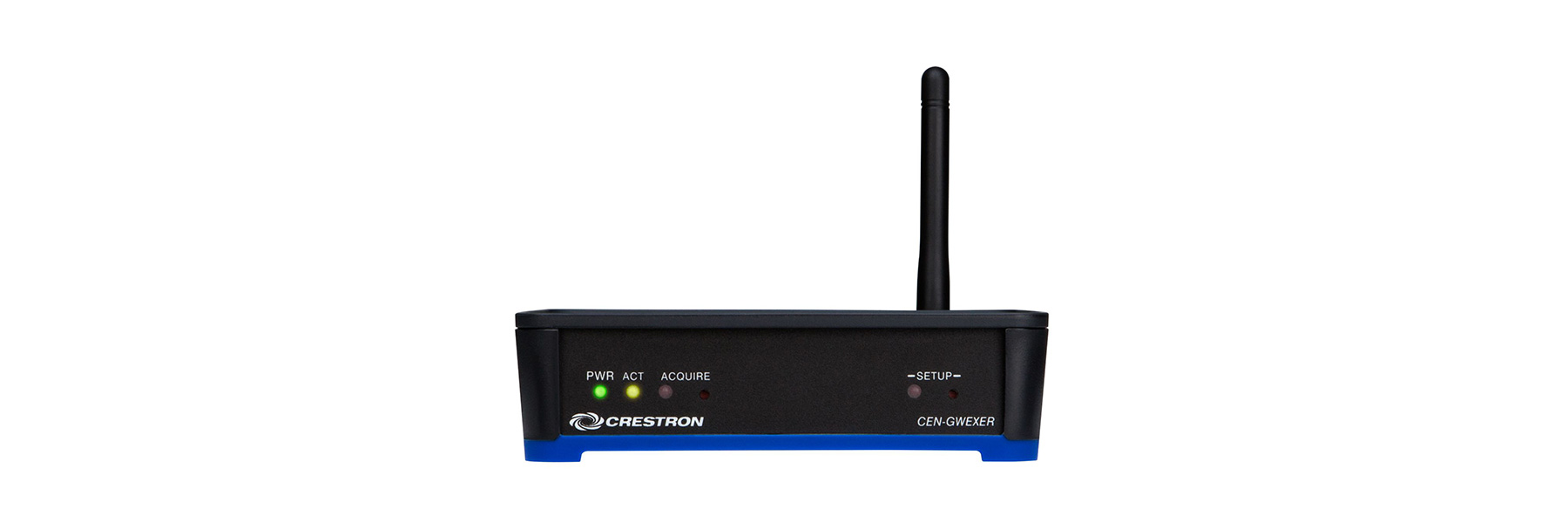

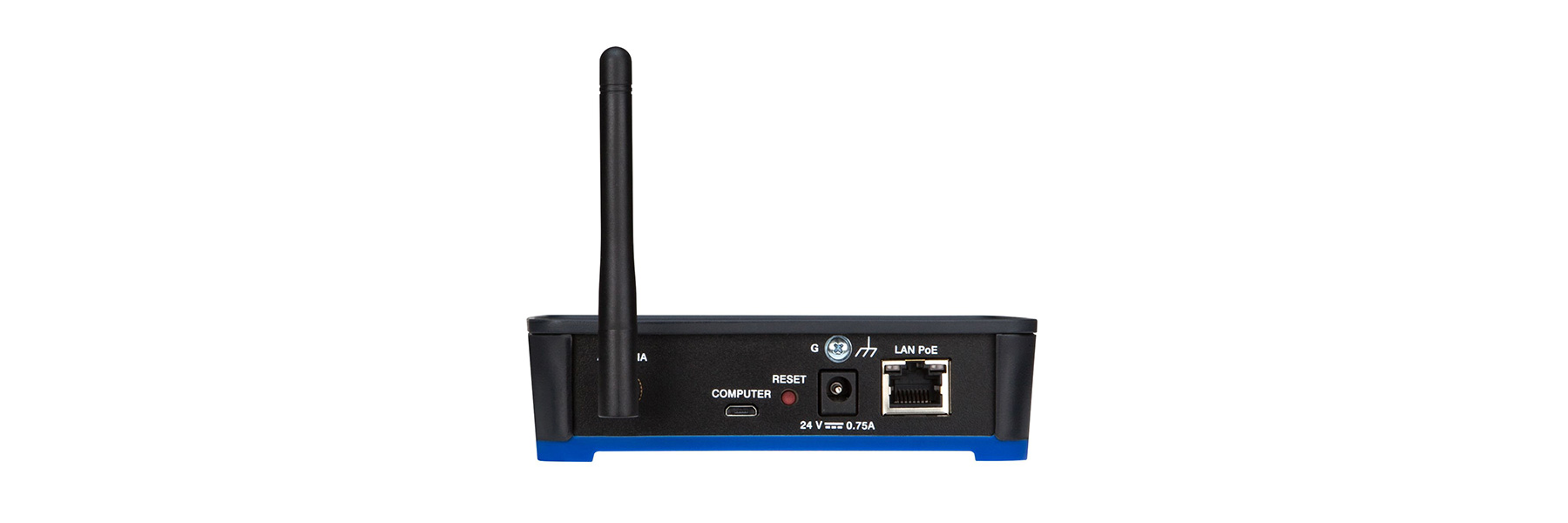

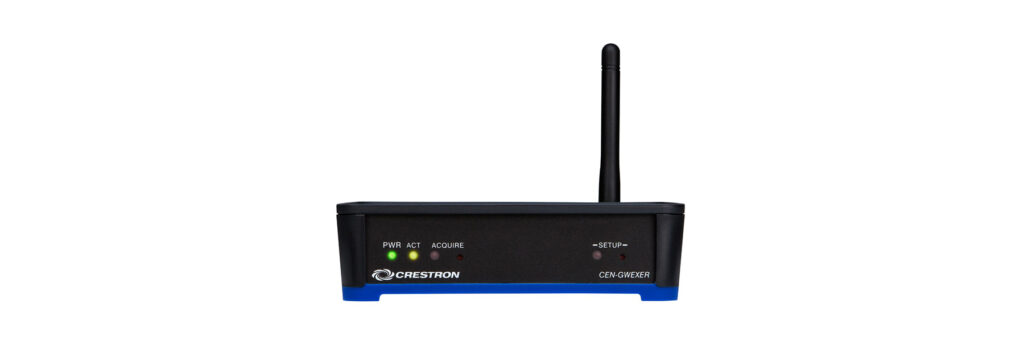

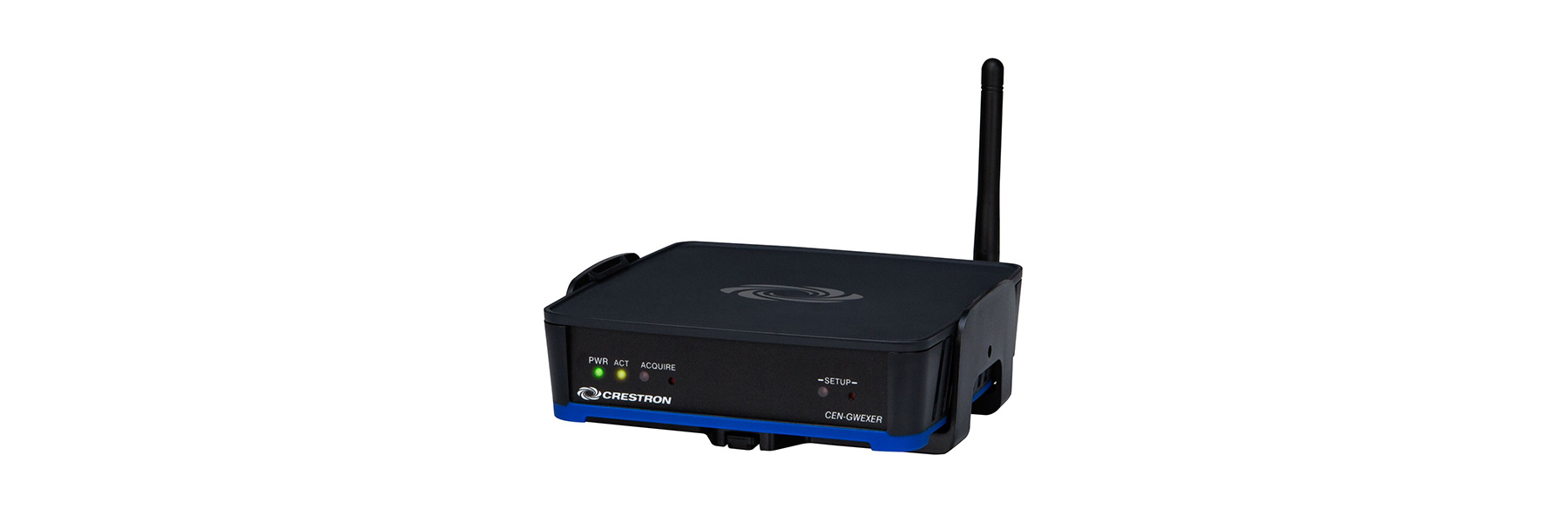

Creston CEN-GWEXER

The CEN-GWEXER is a 2-way RF wireless transceiver designed for use with Crestron® infiNET EX® and “ER” (Extended Range RF) wireless devices. A single CEN-GWEXER gateway enables an entire wireless network of Crestron remotes, keypads, lighting dimmers, motorized shades, thermostats, door locks, and other devices to communicate with a Crestron control system.

Ultra-reliable infiNET EX wireless technology provides steadfast 2-way RF communications throughout a residential or commercial structure without the need for physical control wiring. Employing a 2.4 GHz mesh network topology, nearly every infiNET EX device on the network acts as an “expander,” relaying wireless commands between the gateway and all the other “EX” devices on the network to ensure that every command reaches its intended destination without disruption. Each infiNET EX device that is added to the network effectively increases the range and stability of the entire network by providing multiple redundant signal paths. The wireless range between any two EX devices is typically up to 150 ft (46 m) indoors.[1]

Creston CEN-GWEXER Key Features

  • Multipurpose 2-way RF wireless gateway
  • Simultaneously supports infiNET EX® and Crestron “ER” wireless devices [2]
  • Ultra dependable infiNET EX mesh network technology
  • “Extended Range” RF technology optimized for wireless touch screen remotes
  • Dynamic discovery for fast, easy setup
  • “Wi-Fi® friendly” channel selection for trouble-free operation
  • Built-in RF network diagnostics
  • Up to 150 feet (46 meters) infiNET EX range indoors, 250 feet (76 m) outdoors [1]
  • 100 to 200 feet (33 to 66 meters) ER range indoors, 1000 feet outdoors
  • Supports infiNET EX expanders and ER roaming for extended coverage [1,3]
  • Extendable antenna using optional ANT-EXT [5]
