Creston Video Processors

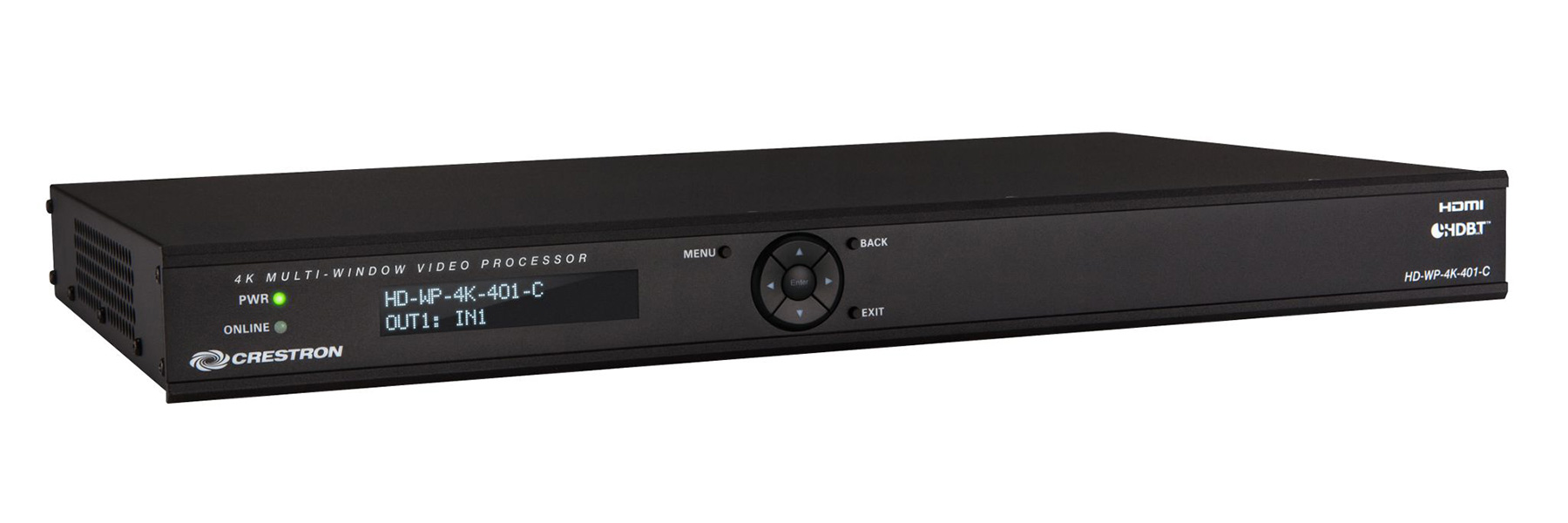

HD-WP-4K-401-C

The HD-WP-4K-401-C enables the display of up to four video sources simultaneously on a single HD, Ultra HD, or 4K display. Parallel HDMI® and HDBaseT® outputs provide flexible connectivity for the display device and other equipment. Input sources up to 4K are supported via four HDMI inputs. Fully automatic operation enables use without a control system, while enhanced operation and custom functionality can be attained through integration with a control system.

The HD-WP-4K-401-C is engineered to deliver a professional onscreen experience with crystal clear 4K video quality and smooth transitions. Using Automatic mode, the screen fluidly configures itself based on the number of connected sources. With four sources connected, all four images appear in four equal sized windows that combine to fill the screen. Disconnect or disable one source and the screen reconfigures to display only three windows (two top, one bottom). Connect or select only two sources and they display side by side, while a single source displays full screen.

PIP (Picture-In-Picture) windowing is also supported, allowing one source to be displayed full screen with a second source displayed in an inset PIP window. The size and location of the PIP window can be defined at setup. All windowing modes and input assignments can be managed at setup or while in operation using the front panel controls, a web browser, or a control system.

Key Features HD-WP-4K-401-C

  • Displays up to four video sources on a single HD, Ultra HD, or 4K display
  • Automatic, quad view, side-by-side, PIP, and full screen modes
  • Automatic mode affords plug-and-play operation without a control system
  • Professional performance ensures smooth, glitch-free on-screen transitions
  • Built-in Crestron Connect It collaboration system functionality
  • Automated display power control via CEC or RS-232
  • Optional control system integration enables fully-customizable control
  • HDMI® and HDBaseT® outputs support versatile system configuration and long wire runs
  • Supports input and output resolutions up to 4K/30 (4096×2160@30Hz) or WQXGA (2560×1600@60Hz)

DM-DGE-200-C

The DM-DGE-200-C Digital Graphics Engine transforms an HD or Ultra HD touch screen display into an advanced Crestron® controller. Featuring Crestron Smart Graphics® technology, the DM-DGE-200-C provides for the creation of a completely custom graphical environment combining advanced controls for audio & video, lighting, shades, HVAC, security, and other functions with dual-window video display, annotation, audio feedback, and web browsing. Its low-profile, surface-mountable design allows for a discreet installation behind a flat-panel display, under a table, or inside a lectern or equipment rack.

The DM-DGE-200-C features a 4K UHD capable HDMI® output for connection to the display device, and includes a USB HID port for touch, mouse, and/or keyboard input. Additional control ports are provided to enable control of the display device and other equipment.

DM-DGE-200-C Key Features

  • Touch screen graphics engine for the Crestron® TSD-2220 or a third-party USB HID compliant touch screen
  • Also supports OSM applications without a touch screen
  • HDMI® output supports Full HD 1080p60 and 4K Ultra HD (3840×2160@30Hz) display resolutions
  • Displays dual-window or full screen video from HDMI, DM 8G+®, and H.264 streaming inputs
  • Supports video input resolutions up to 4K UHD and DCI 4K via DM 8G+ or up to 1080p60 via HDMI
  • Receives H.264 streaming video signals up to 1080p60/25Mpbs
  • DM 8G+ input supports cable lengths up 330 ft (100 m)
  • HDCP 2.2 and 1.4 compliant

DGE-100

The DGE-100 Digital Graphics Engine transforms an HD touch screen display into an advanced Crestron® controller. Featuring Crestron Smart Graphics® technology, the DGE-100 provides for the creation of a completely custom graphical environment combining advanced controls for audio & video, lighting, shades, HVAC, security, and other functions with dual-window video display, annotation, audio feedback, and web browsing. Its low-profile, surface-mountable design allows for a discreet installation behind a flat-panel display, under a table, or inside a lectern or equipment rack.

The DGE-100 features an HDMI® output for connection to the display device, and includes a USB HID port for touch, mouse, and/or keyboard input. Additional control ports are provided to enable control of the display device and other equipment. A single HDMI input allows an AirMedia® wireless presentation gateway or other high-definition video source to be connected and displayed on screen. Additionally, H.264 streaming video signals can be received over a high-speed Ethernet connection. Ethernet also provides the interface to a Crestron control system.

DGE-100 Key Features

  • Touch screen graphics engine for the Crestron® TSD-2220 or a third-party USB HID compliant touch screen
  • Also supports OSM applications without a touch screen
  • HDMI® output supports display resolutions up to Full HD 1080p60 and WUXGA
  • Displays dual-window or full screen video from HDMI and H.264 streaming sources
  • Supports video input resolutions up to 1080p60 via HDMI
  • Receives H.264 streaming video signals up to 1080p60/25Mpbs
  • HDCP 1.4 compliant (HDMI only)
  • Crestron Smart Graphics® technology
  • Built-in annotation capabilities
  • Compatible as a video source for Crestron AirBoard whiteboard capture system
  • Customizable audio feedback
  • Built-in web browsing
