Creston DigitalMedia Presentation Switchers

DigitalMedia Presentation Switchers

DMPS3-4K-350-C

3-Series® 4K DigitalMedia Presentation System 350

The DMPS3-4K-350-C from Crestron® offers an all-in-one 4K AV presentation system for classrooms, boardrooms, lecture halls, and videoconference rooms. Delivering a complete, custom-programmable room solution with fully-configurable signal routing and processing is easy and cost-effective using the DMPS3-4K-350-C. In one 3-space rack mount package, it integrates the control system, matrix switcher, video scalers, streaming decoder, mic mixer, audio DSP, and amplifier.

Its built-in AirMedia® gateway, when activated, enables wireless presentation from computers and mobile devices. DigitalMedia 8G+® and HDBaseT® connectivity affords a streamlined, long-distance wiring solution for remote sources and display devices, and for facility-wide integration as part of a larger media distribution system.

DMPS3-4K-350-C Key Features

  • Ultra high-definition 9×4 system switcher, scaler, mic mixer, audio DSP, amplifier, and control system
  • Built-in .AV Framework delivers a fully-functional system without any programming
  • Integrated 3-Series Control System® allows fully-programmable room control
  • Built-in H.264 streaming video decoder
  • Provides matrix signal routing for up to 9 video sources and 4 displays
  • Handles video resolutions up to 4K DCI and Ultra HD
  • HDCP 2.2 compliant
  • Provides adjustable input level compensation on each audio input
  • Includes built-in 6-channel gated microphone mixing with DSP
  • Provides two HDMI and two DM 8G+ (HDBaseT compatible) outputs
  • DigitalMedia 8G+® connectivity enables long-distance wiring over CAT type twisted pair cable [7]
  • HDBaseT Certified — Enables direct connection to other HDBaseT certified equipment
  • Features an independent, high-performance 4K scaler at each HDMI output
  • Upscales input signals to match the native resolution of any screen — including 4K and Ultra HD displays!
  • Downscales 4K, UHD, and ultra high-resolution computer signals to fit 1080p and other lower-resolution displays
  • Handles any input resolution from standard NTSC 480i or PAL 576i, to UHD and 4K
  • Provides 3D to 2D signal conversion
  • Provides three balanced stereo audio outputs, each with independent mixer and DSP
  • Furnishes power to PoDM+ and HDBaseT PoE+ powered devices
  • 3-space 19-inch rack-mountable

DMPS3-4K-150-C

3-Series® 4K DigitalMedia Presentation System 150

The DMPS3-4K-150-C from Crestron® provides an ultra high-definition presentation switcher and control solution that’s perfect for huddle rooms, conference rooms, and classrooms. It integrates the control system, multi-format switcher, 4K video scaler, mic preamp, and audio DSP all into one compact device that mounts conveniently under a conference table or in an equipment rack. Built-in Crestron Connect It functionality affords a complete collaboration solution that’s easy and affordable to deploy in any small to medium sized meeting space. Without requiring any programming, the DMPS3-4K-150-C is easily configurable for a variety of media presentation applications.

Auto-switching HDMI®, VGA, and analog audio inputs provide the essential connectivity needed to manage multiple computers and other media sources. A full-featured microphone input is also included for applications requiring high-quality speech reinforcement. The selected input source and microphone can be mixed and routed to one HDMI output and one stereo analog audio output. Additional DigitalMedia 8G+® inputs and output afford a streamlined, long-distance wiring solution for remote sources, for the display device, and for facility-wide integration as part of a larger media distribution system. Built-in 4K scaling ensures the highest possible image quality, and compatibility with the widest range of sources and displays.

Key Features

  • Ultra high-definition, multi-format presentation switcher, scaler, mic preamp, audio DSP, and control system
  • Out of the box Crestron Connect It collaboration system functionality
  • Supports up to four TT-100 series Crestron Connect It Cable Caddies
  • Built-in .AV Framework delivers a fully-functional system without any programming
  • Includes four auto-switching HDMI®, VGA, and stereo analog audio inputs
  • Includes two DM 8G+® inputs
  • Provides 3D to 2D signal conversion, and passes 3D video (without scaling) to 3D displays
  • Provides a balanced stereo audio output with graphic EQ, limiting, and delay
  • Enables analog-to-HDMI audio embedding and de-embedding
  • Features an internal universal power supply for worldwide compatibility
  • Furnishes power to PoDM and HDBaseT PoE powered devices
  • Mounts under the table or in a single 19” rack space

DMPS3-300-C

3-Series® DigitalMedia Presentation System 300

The DMPS3-300-C from Crestron® delivers a complete, high-definition presentation control and signal routing solution for classrooms, boardrooms, lecture halls, and videoconference rooms. It integrates the control system, multi-format matrix switcher, mic mixer, audio DSP, and amplifier all into one 3-space rack mount package.

The DMPS3-300-C offers extensive signal routing flexibility and high-performance signal processing without the need for separate components. Auto-configuring inputs enable plug-and-play compatibility with a wide range of digital and analog sources. Built-in DigitalMedia 8G+® and HDBaseT® connectivity affords a streamlined, long-distance wiring solution for remote sources and display devices, and for facility-wide integration as part of a larger media distribution system.

Key Features

  • High-definition, multi-format 7×4 system switcher, mic mixer, audio DSP, amplifier, and control system
  • Integrated 3-Series Control System® allows fully-programmable room control
  • DigitalMedia 8G+® connectivity enables long-distance wiring over CAT type twisted pair cable
  • HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
  • Provides matrix signal routing for up to 7 video sources and 4 displays
  • Affords versatile audio signal mixing and routing to 7 separate outputs
  • Allows audio-follow-video or breakaway switching for all inputs
  • Enables analog-to-HDMI audio embedding and de-embedding
  • Handles Dolby® TrueHD, Dolby Atmos®, DTS-HD®, and uncompressed 7.1 linear PCM audio
  • Provides 3 stereo analog outputs with independent DSP per output
  • Features built-in amplifier, selectable for 20W/Ch. @ 8Ω stereo or 40W @ 70/100 Volts mono
  • Enables USB signal routing via DM® transmitters and receivers or USB-EXT-DM extenders
  • Includes onboard IR, RS-232, relay, digital input, and Cresnet® control ports
  • Supports Crestron® touch screens, keypads, and wireless remotes
  • Supports XPanel with Smart Graphics® computer and web based control
  • Supports iPhone®, iPad®, and Android® control apps
  • Supports universal remotes via external RC-5 compatible IR receiver
  • Communicates natively with Crestron Fusion® Cloud
  • Enables IT-friendly network integration via SNMP

DMPS3-4K-250-C

3-Series® 4K DigitalMedia Presentation System 250

The DMPS3-4K-250-C from Crestron® offers an all-in-one 4K AV presentation system for classrooms, boardrooms, lecture halls, and videoconference rooms. Delivering a complete, custom-programmable room solution with fully-configurable signal routing and processing is easy and cost-effective using the DMPS3-4K-250-C.

In one 3-space rack mount package, it integrates the control system, matrix switcher, video scaler, streaming decoder, mic mixer, audio DSP, and amplifier. Its built-in AirMedia® gateway, when activated [1], enables wireless presentation from computers and mobile devices. DigitalMedia 8G+® and HDBaseT® connectivity affords a streamlined, long-distance wiring solution for remote sources and display devices, and for facility-wide integration as part of a larger media distribution system.

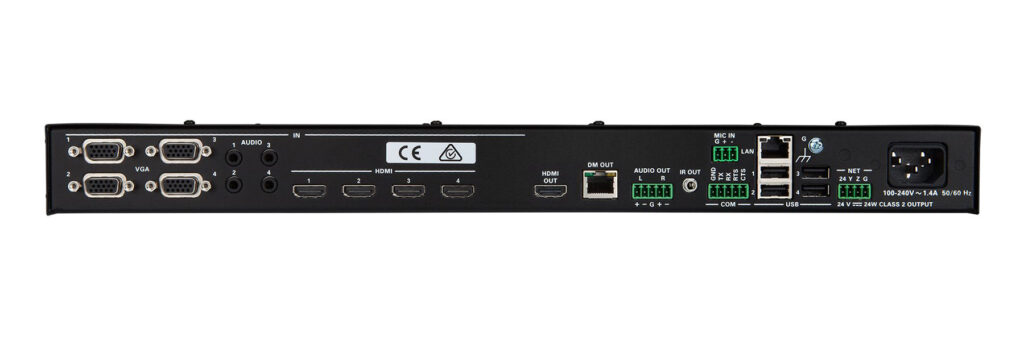

DMPS3-4K-100-C

3-Series® 4K DigitalMedia Presentation System 100

The DMPS3-4K-100-C from Crestron® provides an ultra high-definition presentation switcher and control solution that’s perfect for huddle rooms, conference rooms, and classrooms. It integrates the control system, multi-format switcher, 4K video scaler, mic preamp, and audio DSP all into one compact device that mounts conveniently under a conference table or in an equipment rack. Built-in Crestron Connect It functionality affords a complete collaboration solution that’s easy and affordable to deploy in any small to medium sized meeting space. Without requiring any programming, the DMPS3-4K-100-C is easily configurable for a variety of media presentation applications.

Auto-switching HDMI®, VGA, and analog audio inputs provide the essential connectivity needed to manage multiple computers and other media sources. A full-featured microphone input is also included for applications requiring high-quality speech reinforcement. The selected input source and microphone can be mixed and routed to one HDMI output and one stereo analog audio output. Additionally, its DigitalMedia 8G+® output affords a streamlined, long-distance wiring solution for the display device, and for facility-wide integration as part of a larger media distribution system. Built-in 4K scaling ensures the highest possible image quality, and compatibility with the widest range of sources and displays.


DMPS3-4K-350-C-AIRMEDIA

The DMPS3-4K-350-C-AIRMEDIA from Crestron® offers an all-in-one 4K AV presentation system for classrooms, boardrooms, lecture halls, and videoconference rooms. Delivering a complete, custom-programmable room solution with fully-configurable signal routing and processing is easy and cost-effective using the DMPS3-4K-350-C-AIRMEDIA. In one 3-space rack mount package, it integrates the control system, matrix switcher, video scalers, streaming decoder, mic mixer, audio DSP, and amplifier. Its built-in AirMedia® gateway enables wireless presentation from computers and mobile devices.

DigitalMedia 8G+® and HDBaseT® connectivity affords a streamlined, long-distance wiring solution for remote sources and display devices, and for facility-wide integration as part of a larger media distribution system.

Key Features DMPS3-4K-350-C

  • Ultra high-definition 9×4 system switcher, scaler, mic mixer, audio DSP, amplifier, and control system
  • Built-in .AV Framework delivers a fully-functional system without any programming
  • Integrated 3-Series Control System® allows fully-programmable room control
  • Onboard AirMedia® gateway enables wireless BYOD presentation capability
  • Built-in H.264 streaming video decoder
  • Provides matrix signal routing for up to 9 video sources and 4 displays
  • Handles video resolutions up to 4K DCI and Ultra HD
  • Includes HDMI®, DM 8G+®, and balanced stereo analog audio inputs
  • HDCP 2.2 compliant
  • Provides adjustable input level compensation on each audio input
  • Includes built-in 6-channel gated microphone mixing with DSP
  • Provides two HDMI and two DM 8G+ (HDBaseT compatible) outputs
  • DigitalMedia 8G+® connectivity enables long-distance wiring over CAT type twisted pair cable
  • Provides 3D to 2D signal conversion
  • Provides three balanced stereo audio outputs, each with independent mixer and DSP
  • Provides two additional audio mixes, either of which is selectable at any digital output
  • Features a built-in amplifier, selectable for 25W/Ch. @ 8Ω stereo or 50W @ 70/100 Volts mono
  • Enables analog-to-HDMI audio embedding and de-embedding

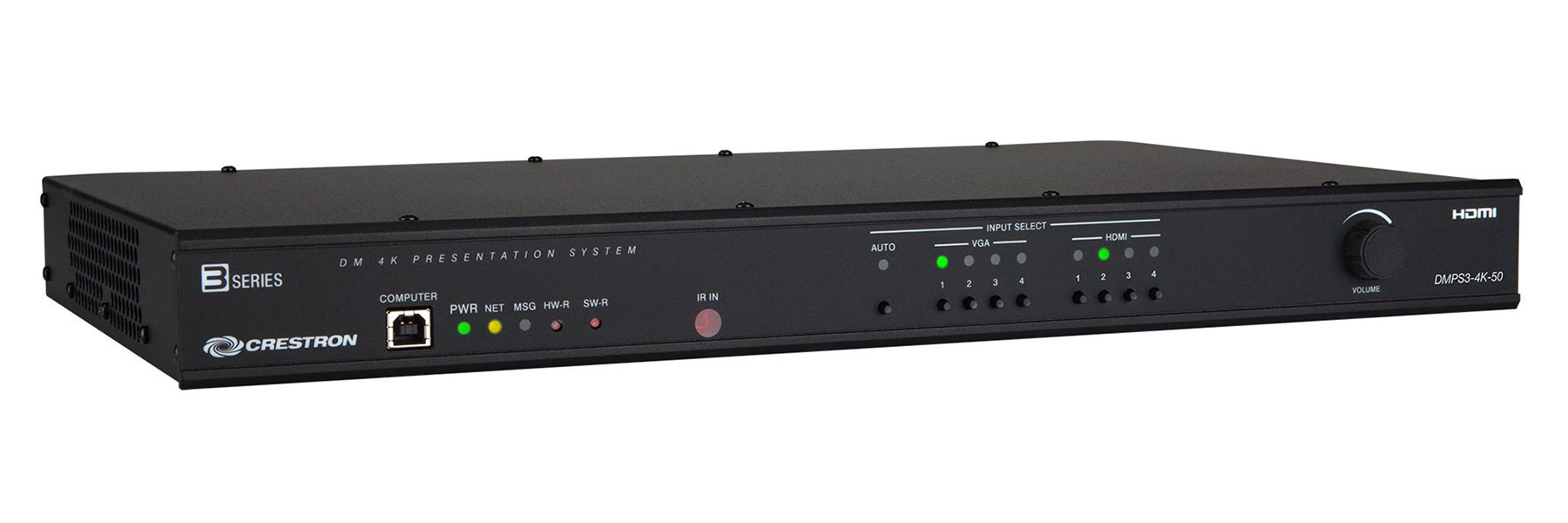

DMPS3-4K-50

The DMPS3-4K-50 from Crestron® provides an ultra high-definition presentation switcher and control solution that’s perfect for huddle rooms, conference rooms, and classrooms. It integrates the control system, multi-format switcher, 4K video scaler, and audio DSP all into one compact device that mounts conveniently under a conference table or in an equipment rack.

Without requiring any programming, the DMPS3-4K-50 is easily configurable for a variety of media presentation applications. Auto-switching HDMI®, VGA, and analog audio inputs provide the essential connectivity needed to manage multiple computers and other media sources. The selected input source is routed to one HDMI output and one stereo analog audio output. Built-in 4K scaling ensures the highest possible image quality, and compatibility with the widest range of sources and displays.


DMPS3-4K-250-C-AIRMEDIA

The DMPS3-4K-250-C-AIRMEDIA from Crestron® offers an all-in-one 4K AV presentation system for classrooms, boardrooms, lecture halls, and videoconference rooms. Delivering a complete, custom-programmable room solution with fully-configurable signal routing and processing is easy and cost-effective using the DMPS3-4K-250-C-AIRMEDIA.

In one 3-space rack mount package, it integrates the control system, matrix switcher, video scaler, streaming decoder, mic mixer, audio DSP, and amplifier. Its built-in AirMedia® gateway enables wireless presentation from computers and mobile devices. DigitalMedia 8G+® and HDBaseT® connectivity affords a streamlined, long-distance wiring solution for remote sources and display devices, and for facility-wide integration as part of a larger media distribution system.

Key Features

  • Ultra high-definition 8×2 system switcher, scaler, mic mixer, audio DSP, amplifier, and control system
  • Integrated 3-Series Control System® allows fully-programmable room control
  • Onboard AirMedia® gateway enables wireless BYOD presentation capability
  • Built-in H.264 streaming video decoder
  • Includes HDMI®, DM 8G+®, and balanced stereo analog audio inputs
  • Auto-Locking® technology achieves rapid switching between disparate sources
  • HDCP 2.2 compliant
  • HDBaseT Certified — Enables direct connection to other HDBaseT certified equipment
  • Features a high-performance 4K scaler on the HDMI output
  • Downscales 4K, UHD, and ultra high-resolution computer signals to fit 1080p and other lower-resolution displays
  • Includes onboard IR, RS-232, relay, digital input, and Cresnet® control ports
  • Supports iPhone®, iPad®, and Android control apps
  • 3-space 19-inch rack-mountable

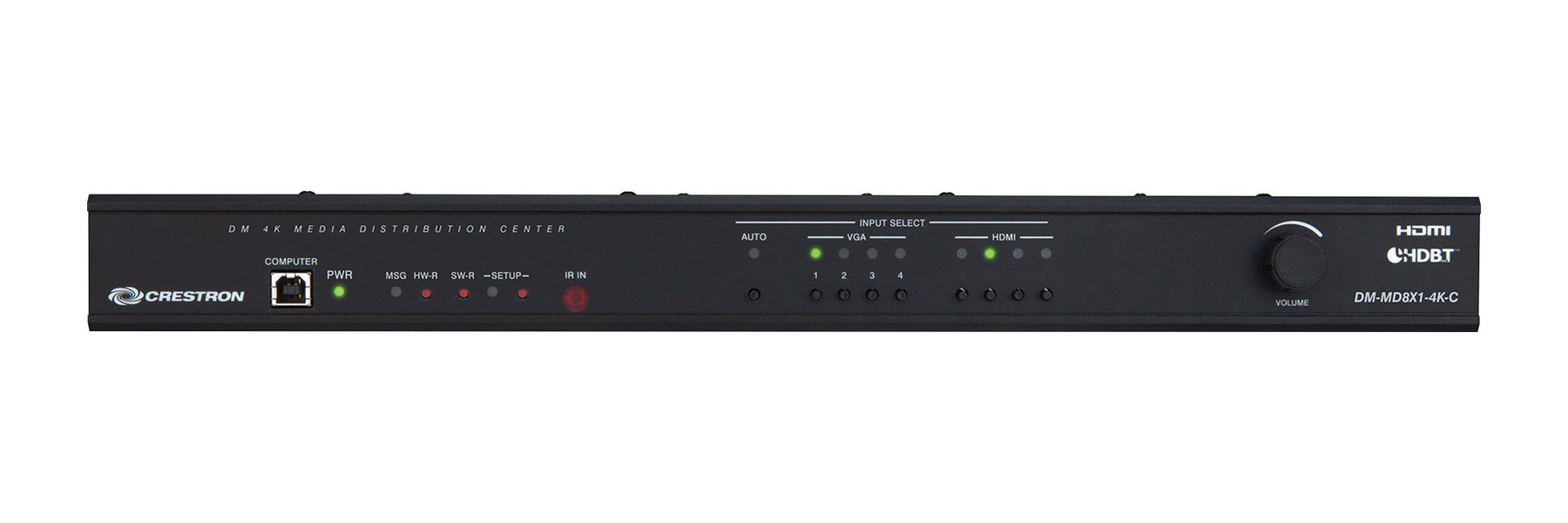

DM-MD8X1-4K-C

The DM-MD8X1-4K-C from Crestron® provides an ultra high-definition presentation switcher with advanced features optimally suited for installation in a huddle room, conference room, or classroom. It integrates a multi-format auto-switcher, 4K video scaler, mic preamp, audio DSP, and control interface, all into one compact device that mounts conveniently under a table or in an equipment rack.

The DM-MD8X1-4K-C works out-of-the-box to provide automatic switching between four HDMI® or VGA sources, plus on/off control of the display device. Outputs include HDMI, DM 8G+ or HDBaseT, and balanced stereo audio. Built-in 4K scaling ensures the highest possible image quality and compatibility with the widest range of sources and displays. Easy web browser setup allows for configuration of the microphone input, audio DSP, and other settings.

Key Features

  • Ultra high-definition, multi-format presentation switcher, scaler, mic preamp, audio DSP, and control interface
  • Out of the box Crestron Connect It collaboration system functionality
  • Supports up to four TT-100 series Crestron Connect It Cable Caddies
  • Includes four auto-switching HDMI®, VGA, and stereo analog audio inputs
  • Also supports Dual-Mode DisplayPort, DVI, and analog video sources
  • Input auto-detection configures each input automatically
  • QuickSwitch HD technology manages HDCP keys for fast, reliable switching
  • HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
  • Features a built-in, high-performance 4K scaler
  • Upscales input signals to match the native resolution of any screen — including 4K and Ultra HD displays!
  • Communicates natively with Crestron Fusion® Cloud
  • Features an internal universal power supply for worldwide compatibility
  • Furnishes Power over DM® or HDBaseT for PoDM/PoH-powered devices
  • Mounts under the table or in a single 19” rack space

HD-MD8X1-4K

The HD-MD8X1-4K from Crestron® provides an ultra high-definition presentation switcher with advanced features optimally suited for installation in a huddle room, conference room, or classroom. It integrates a multi-format auto-switcher, 4K video scaler, audio DSP, and control interface, all into one compact device that mounts conveniently under a table or in an equipment rack.


DM-MD8X1-4K-C

The DM-MD8X1-4K-C from Crestron® provides an ultra high-definition presentation switcher with advanced features optimally suited for installation in a huddle room, conference room, or classroom. It integrates a multi-format auto-switcher, 4K video scaler, mic preamp, audio DSP, and control interface, all into one compact device that mounts conveniently under a table or in an equipment rack.


DMPS3-300-C-AEC

The DMPS3-300-C-AEC from Crestron® delivers a complete, high-definition presentation control and conferencing solution for boardrooms, classrooms, and videoconference rooms. It integrates the control system, multi-format matrix switcher, mic mixer, audio conferencing interface, audio DSP, and amplifier all into one 3-space rack mount package.

The DMPS3-300-C-AEC offers extensive signal routing flexibility and high-performance signal processing without the need for separate components. Auto-configuring inputs enable plug-and-play compatibility with a wide range of digital and analog sources. Built-in DigitalMedia 8G+® and HDBaseT® connectivity affords a streamlined, long-distance wiring solution for remote sources and display devices, and for facility-wide integration as part of a larger media distribution system.
