Creston DigitalMedia Receivers

DM-RMC-4KZ-100-C

The DM-RMC-4KZ-100-C provides a simple one-box interface solution for a single display device as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G+® receiver and control interface, providing a single HDMI® output along with Ethernet, RS-232, and IR control ports.

In addition to DM 8G+, it is also compatible with HDBaseT®, which allows it to be connected directly to an HDBaseT certified source. Its compact, low-profile design allows the DM-RMC-4KZ-100-C to be installed discreetly behind a flat panel display or above a ceiling mounted projector. It connects to the head end or source location using a single CAT type twisted pair cable.

DM-RMC-4KZ-100-C Key Features

  • DigitalMedia 8G+® receiver and display controller
  • Connects to a DM® switcher or transmitter over a single CAT type twisted pair cable
  • HDBaseT® compatible — Enables direct connection to other HDBaseT certified equipment
  • Provides one HDMI® or DVI display output
  • Handles UHD and 4K video resolutions up to 4K60 4:4:4
  • Handles HDR (High Dynamic Range) video (HDR10)
  • Handles 3D video and Deep Color
  • Handles Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
  • HDCP 2.2 compliant

DM-RMC-4KZ-SCALER-C

The DM‑RMC‑4KZ‑SCALER‑C provides an advanced one‑box interface solution for a single display device as part of a complete Crestron® DigitalMedia system.

Functioning as a DM 8G+® receiver, 4K60 4:4:4 HDR video scaler, and control interface, the DM‑RMC‑4KZ‑SCALER‑C provides DM 8G+ and HDMI® inputs, an HDMI output, and an analog audio output. RS‑232, IR, Ethernet, and relay control ports are also provided.

DM-RMC-4KZ-SCALER-C Key Features

  • DigitalMedia 8G+® receiver, audio extractor, and display controller
  • Handles UHD and 4K video resolutions up to 4K60 4:4:4
  • Handles HDR (High Dynamic Range) video (HDR10) and Deep Color
  • Provides one DM 8G+® input for connection to a DM® switcher or transmitter via a single CAT 5e (or higher) twisted pair cable
  • Compatible with the HDBaseT® standard
  • Provides one HDMI® input
  • Provides one HDMI output with 4K60 4:4:4 scaler
  • Enables adjustable overscan or underscan up to 7.5%

DM-RMC-SCALER-C

The DM-RMC-SCALER-C provides an advanced one-box interface solution for a single display device as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G+® receiver, video scaler, and control interface. It provides a single HDMI® output along with Ethernet, USB HID, RS-232, and IR control ports.

In addition to DM 8G+, it is also compatible with HDBaseT®, allowing it to be connected directly to an HDBaseT certified source. Built-in scaling enables the connected display to handle any video resolution up to HD 1080p or WUXGA. Its compact, low-profile design allows the DM-RMC-SCALER-C to be installed discreetly behind a flat panel display or above a ceiling mounted projector. It connects to the head end or source location using a single CAT type twisted pair cable.

DM-RMC-SCALER-C Key Features

  • DigitalMedia 8G+® receiver, high-definition scaler, and display controller
  • Connects to a DM® switcher or transmitter over a single CAT type twisted pair cable
  • Supports cable lengths up to 330 ft (100 m) using DM 8G® cable or CAT5e
  • HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
  • Provides one HDMI® or DVI display output
  • Handles any video resolution from standard NTSC 480i or PAL 576i, to HD 1080p60 w/Deep Color
  • Handles any computer resolution from VGA to UXGA/WUXGA

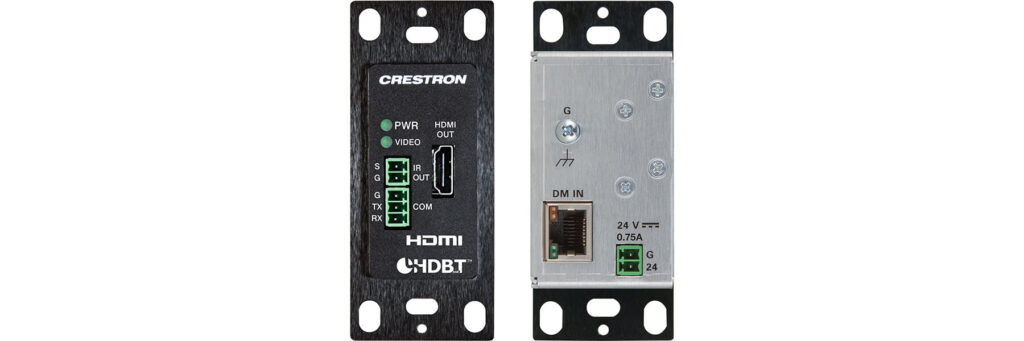

DM-RMC-4K-100-C-1G-B-T

The DM-RMC-4K-100-C-1G provides a simple, cost-effective interface solution for a single display device as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G+® receiver and control interface, providing a single HDMI® output along with RS-232 and IR control ports. In addition to DM 8G+, it is also compatible with HDBaseT®, allowing it to be connected directly to an HDBaseT certified source.

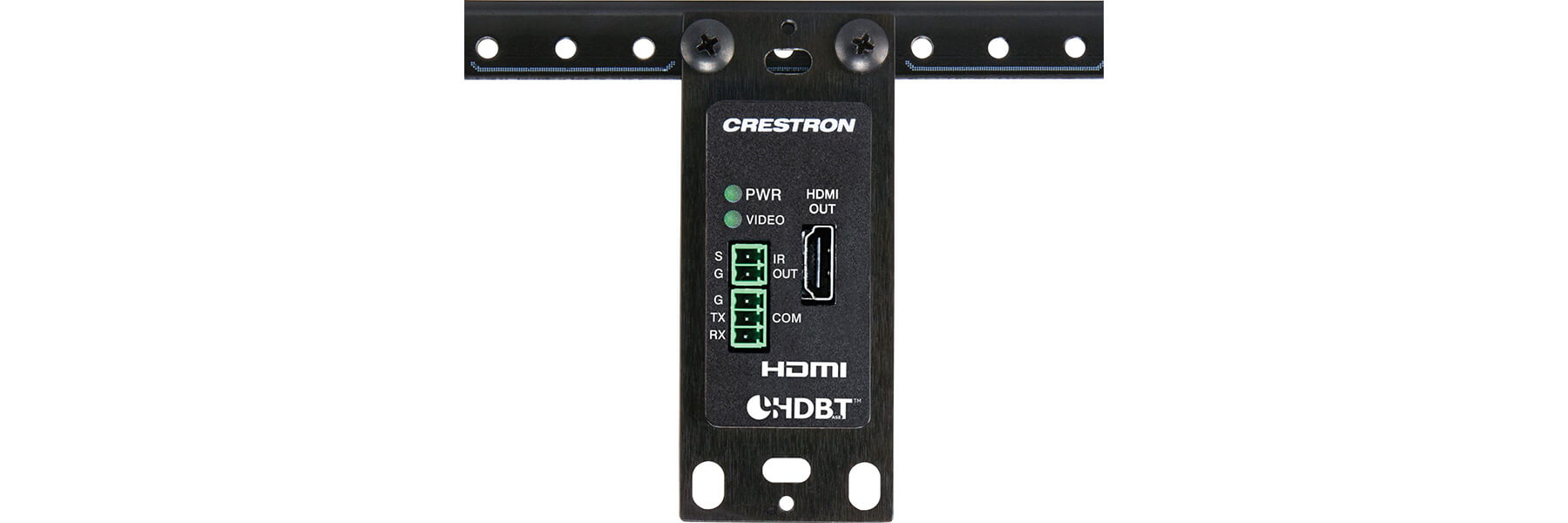

Its 1-gang mountable design allows the DM-RMC-4K-100-C-1G to be flush mounted behind a flat panel display or above a ceiling mounted projector. It can also be mounted beneath a table or attached to a suitable flat surface using the mounting bracket provided. It connects to the head end or source location using a single CAT type twisted pair cable.

DM-RMC-4K-100-C-1G-B-T Key Features

  • Cost-effective DigitalMedia 8G+® receiver and display controller
  • Connects to a DM® switcher or transmitter over a single CAT type twisted pair cable
  • HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
  • Provides one HDMI® or DVI display output
  • Handles video resolutions up to 4K and Ultra HD
  • Handles 3D video and Deep Color
  • Handles Dolby® TrueHD, Dolby Atmos®, DTS-HD®, and uncompressed 7.1 linear PCM audio
  • HDCP 2.2 compliant

DM-RMC-200-C

The DM-RMC-200-C provides an advanced one-box interface solution for a single display device as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G+® receiver, video scaler, audio amplifier, and control interface. It provides a single HDMI® output, along with speaker and line level audio outputs, plus Ethernet, USB HID, and a variety of control ports.

Its compact, low-profile design allows the DM-RMC-200-C to be installed discreetly behind a flat panel display or above a ceiling mounted projector. It connects to the head end or source location using a single CAT type twisted pair cable.

DM-RMC-200-C Key Features

  • DigitalMedia 8G+® receiver, high-definition scaler, audio amplifier, and display controller
  • Connects to a DM® switcher or transmitter over a single CAT type twisted pair cable
  • Supports cable lengths up to 330 ft (100 m) using DM 8G® cable or CAT5e
  • HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
  • Provides one HDMI® or DVI display output
  • Handles any video resolution from standard NTSC 480i or PAL 576i, to HD 1080p60 w/Deep Color
  • Handles any computer resolution from VGA to UXGA/WUXGA
  • Scales the signal to match the native resolution of virtually any digital video display or computer monitor up to 1080p or WUXGA

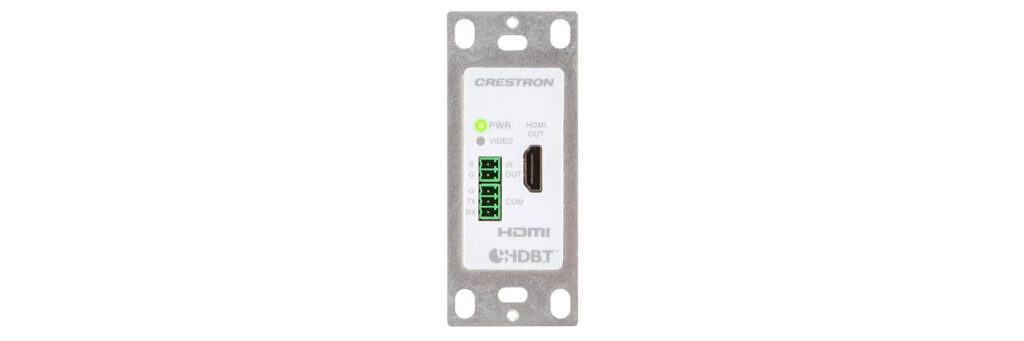

DM-RMC-4K-100-C-1G-W-T

The DM-RMC-4K-100-C-1G provides a simple, cost-effective interface solution for a single display device as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G+® receiver and control interface, providing a single HDMI® output along with RS-232 and IR control ports. In addition to DM 8G+, it is also compatible with HDBaseT®, allowing it to be connected directly to an HDBaseT certified source.

DM-RMC-4K-100-C-1G-W-T Key Features

  • Cost-effective DigitalMedia 8G+® receiver and display controller
  • Connects to a DM® switcher or transmitter over a single CAT type twisted pair cable
  • HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
  • Provides one HDMI® or DVI display output
  • Handles video resolutions up to 4K and Ultra HD
  • Handles 3D video and Deep Color

DM-RMC-100-S

The DM-RMC-100-S provides a simple one-box interface solution for a single display device as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G® Fiber receiver and control interface, providing a single HDMI® output along with Ethernet, RS-232, and IR control ports. Its compact, low-profile design allows the DM-RMC-100-S to be installed discreetly behind a flat panel display or above a ceiling mounted projector. It connects to the head end or source location using a single multimode fiber strand.

DM-RMC-100-S Key Features

  • DigitalMedia 8G Fiber receiver and display controller
  • Connects to a DM® switcher or transmitter over one multimode fiber strand
  • Supports cable lengths up to 1000 ft (300 m) using CresFiber® 8G, or 500 ft (150 m) using other multimode fiber
  • Provides one HDMI® or DVI display output
  • Handles video resolutions up to Full HD 1080p
  • Handles computer resolutions up to WUXGA

DM-RMC-SCALER-S

The DM-RMC-SCALER-S provides an advanced one-box interface solution for a single display device as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G® Fiber receiver, video scaler, and control interface, providing a single HDMI® output along with Ethernet, USB HID, RS-232, and IR control ports.

Built-in scaling enables the connected display to handle any video resolution up to HD 1080p or WUXGA. Its compact, low-profile design allows the DM-RMC-SCALER-S to be installed discreetly behind a flat panel display or above a ceiling mounted projector. It connects to the head end or source location using a single multimode fiber strand.

DM-RMC-SCALER-S Key Features

  • DigitalMedia 8G Fiber receiver, high-definition scaler, and display controller
  • Connects to a DM® switcher or transmitter over one multimode fiber strand
  • Supports cable lengths up to 1000 ft (300 m) using CresFiber® 8G, or 500 ft (150 m) using other multimode fiber
  • Provides one HDMI® or DVI display output
  • Handles any video resolution from standard NTSC 480i or PAL 576i, to HD 1080p60 w/Deep Color
  • Handles any computer resolution from VGA to UXGA/WUXGA
  • Scales the signal to match the native resolution of virtually any digital video display or computer monitor up to 1080p or WUXGA

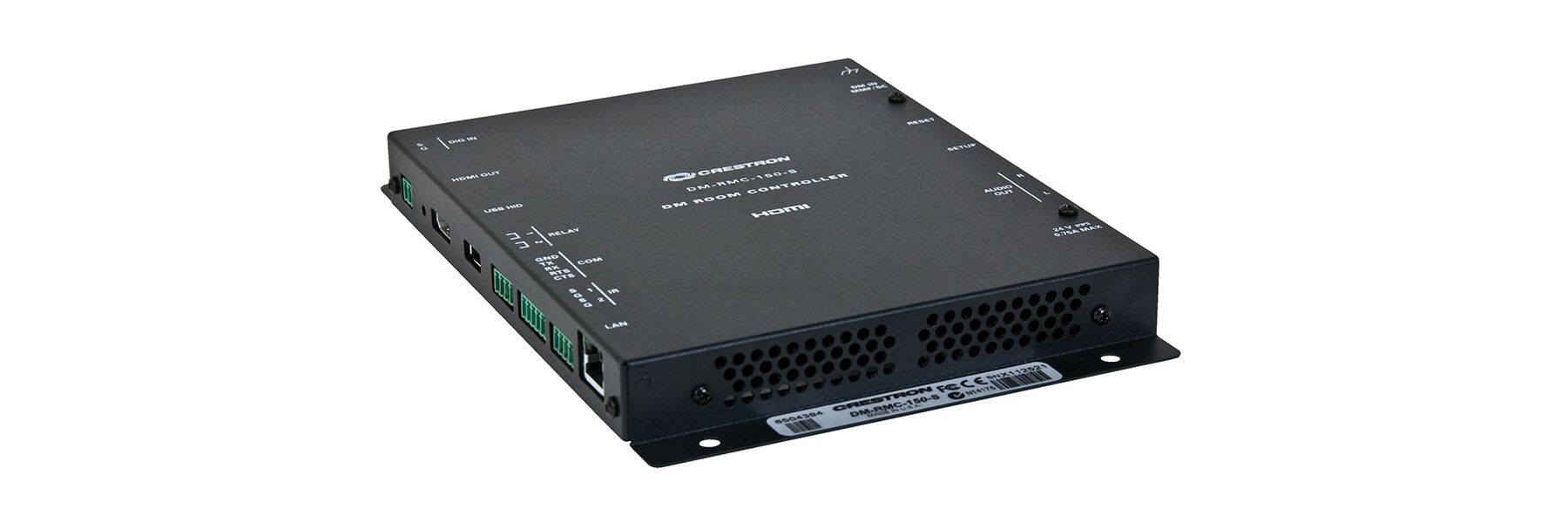

DM-RMC-150-S

The DM-RMC-150-S provides an enhanced one-box interface solution for a single display device as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G® Fiber receiver and control interface, providing a single HDMI® output and an analog audio output, plus Ethernet, USB HID, and a variety of control ports.

Its compact, low-profile design allows the DM-RMC-150-S to be installed discreetly behind a flat panel display or above a ceiling mounted projector. It connects to the head end or source location using a single multimode fiber strand.

DM-RMC-150-S Key Features

  • DigitalMedia 8G Fiber receiver, audio extractor, and display controller
  • Connects to a DM® switcher or transmitter over one multimode fiber strand
  • Supports cable lengths up to 1000 ft (300 m) using CresFiber® 8G, or 500 ft (150 m) using other multimode fiber
  • Provides one HDMI® or DVI display output
  • Handles video resolutions up to Full HD 1080p
  • Handles computer resolutions up to WUXGA
  • Handles 3D video and Deep Color

DM-RMC-200-S

The DM-RMC-200-S provides an advanced one-box interface solution for a single display device as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G® Fiber receiver, video scaler, audio amplifier, and control interface, providing a single HDMI® output along with speaker and line level audio, plus Ethernet, USB HID, and a variety of control ports.

Built-in scaling enables the connected display to handle any video resolution up to HD 1080p or WUXGA. Its compact, low-profile design allows the DM-RMC-200-S to be installed discreetly behind a flat panel display or above a ceiling mounted projector. It connects to the head end or source location using a single multimode fiber strand.

DM-RMC-200-S Key Features

  • Includes content-adaptive noise reduction
  • Allows motion-adaptive de-interlacing or interlacing
  • Allows adjustable overscan or underscan up to 7.5%
  • Provides automatic 3D to 2D signal conversion
  • Automatically passes 3D video without scaling to 3D capable displays
  • Supports left/right eye steering for dual-projector 3D setup
  • Scalable zoom feature enables 2×2, 3×2, 3×3, 4×3, or 4×4 video wall capability
  • Handles Dolby® TrueHD, DTS-HD®, and uncompressed 7.1 linear PCM audio

DM-RMC-SCALER-S2

The DM-RMC-SCALER-S2 provides an advanced one-box interface solution for a single display device as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G® SM Fiber receiver, video scaler, and control interface, providing a single HDMI® output along with Ethernet, USB HID, RS-232, and IR control ports.

Built-in scaling enables the connected display to handle any video resolution up to HD 1080p or WUXGA. Its compact, low-profile design allows the DM-RMC-SCALER-S2 to be installed discreetly behind a flat panel display or above a ceiling mounted projector. It connects to the head end or source location using one single-mode fiber strand.

DM-RMC-SCALER-S2 Key Features

  • Supports cable lengths up to 7.5 miles (12 km) using CresFiber® 8G SM or G.652.D single-mode fiber
  • Provides one HDMI® or DVI display output
  • Handles any video resolution from standard NTSC 480i or PAL 576i, to HD 1080p60 w/Deep Color
  • Handles any computer resolution from VGA to UXGA/WUXGA
  • Scales the signal to match the native resolution of virtually any digital video display or computer monitor up to 1080p or WUXGA
  • Provides intelligent frame rate conversion
  • Includes content-adaptive noise reduction
  • Allows motion-adaptive de-interlacing or interlacing
  • Allows adjustable overscan or underscan up to 7.5%

DM-RMC-200-S2

The DM-RMC-200-S2 provides an advanced one-box interface solution for a single display device as part of a complete Crestron® DigitalMedia system. It functions as a DM 8G® SM Fiber receiver, video scaler, audio amplifier, and control interface, providing a single HDMI® output along with speaker and line level audio, plus Ethernet, USB HID, and a variety of control ports. Built-in scaling enables the connected display to handle any video resolution up to HD 1080p or WUXGA.

Its compact, low-profile design allows the DM-RMC-200-S2 to be installed discreetly behind a flat panel display or above a ceiling mounted projector. It connects to the head end or source location using one single-mode fiber strand.

DM-RMC-200-S2 Key Features

  • DigitalMedia 8G Single-Mode Fiber receiver, high-definition scaler, audio amplifier, and display controller
  • Connects to a DM® switcher or transmitter over one single-mode fiber strand
  • Supports cable lengths up to 7.5 miles (12 km) using CresFiber® 8G SM or G.652.D single-mode fiber
  • Provides one HDMI® or DVI display output
  • Handles any video resolution from standard NTSC 480i or PAL 576i, to HD 1080p60 w/Deep Color
  • Handles any computer resolution from VGA to UXGA/WUXGA
  • Scales the signal to match the native resolution of virtually any digital video display or computer monitor up to 1080p or WUXGA
  • Provides intelligent frame rate conversion
  • Includes content-adaptive noise reduction
